Specifications
Brand Name :
CMO
Model Number :
G104X1-L04
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD
Panel Size :
10.4 inch
Resolution :
1024×768
Outline :
225.5×176.3×9.2 mm
Contrast Ratio :
1000:1 (Typ.)
Frequency :
60Hz
Description

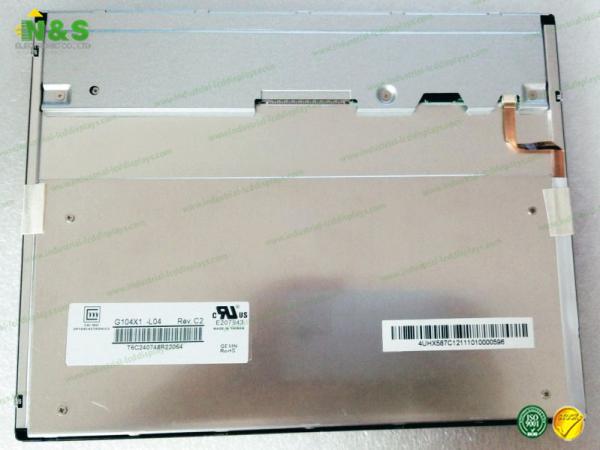

Normally Black G104X1-L04 TFT LCD Module 10.4 inch CMO Outline 225.5×176.3×9.2 mm Contrast Ratio 1000:1 (Typ.)

What’s our advantage compared with other suppliers?

(1). Before shipment, we will test every LCD Screen and ensure the quality.

(2). we provide high quality lcd panels for customers all over the world.

(3) .We have DBS, ISO9001 Certifications for our Panels.

(4) .Excellent service on before-sale, on-sale and after-sale.

FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

We can do for You:

1. Quality Guarantee:

100% original new Hard Disk for you.

2.Fast reply:

Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

3.Delivery Guarantee:

Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.

4.After-Sale Service:

Professional support team to provide effective service, we are young and full of passion!

5. Professional acknowledgement of hard disks to provide customers with effective advice.

We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.

6. Competitive quotation:

Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

G104X1-L04 Basic Information

Panel Model G104X1-L04
Panel Brand CMO
Descrition a-Si TFT-LCD ,10.4 inch, 1024×768
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 70 °C
Storage Temperature -30 ~ 80 °C
Remarks Rev.C1:Haze 25%; Rev.C2:Haze 22%

G104X1-L04 Mechanical Features

Dot Resolution 1024(RGB)×768 (XGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 123 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0685×0.2055 mm (H×V)
Pixel Pitch 0.2055×0.2055 mm (H×V)
Weight 430±50g
Surface Antiglare
Active Area 210.432×157.824 mm (H×V)
Bezel Area 215.4×161.8 mm (H×V)
Outline Dimension 225.5×176.3 mm (H×V)
Outline Depth 7.96/9.2 (Typ./Max.) mm
Holes & Brackets Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

G104X1-L04 Optical Features

Display Mode Super MVA, Normally Black, Transmissive
Brightness 500 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Display Color 262K/16.2M (6-bit / 6-bit + FRC)
Color Gamut 55% NTSC (CIE1931)
Response Time 14/11 (Typ.)(Tr/Td)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.40 (Typ./Max.)(5 points)
Sunlight Readable N

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
C060SWA3 R0 IVO 6.0" 720×1280
C080SWW3-0 IVO 8.0" 800×1280
CLAP042JB01 DW CPT 4.2" 480×272
BP096WX7-100 BOE 9.6" 800×1280
V500HK3-PS1 Innolux 50" 1920×1080
ST3151A04-7 CSOT 31.5" 1366×768
HSD0702FW1-A00 HannStar 7.0" 1024×600
TPF0702002N JDI 7.0" 1200×1920
LQ156D1JX02 SHARP 15.6" 3840×2160
BF050QHE-400 BOE 5.0" 540×960

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
