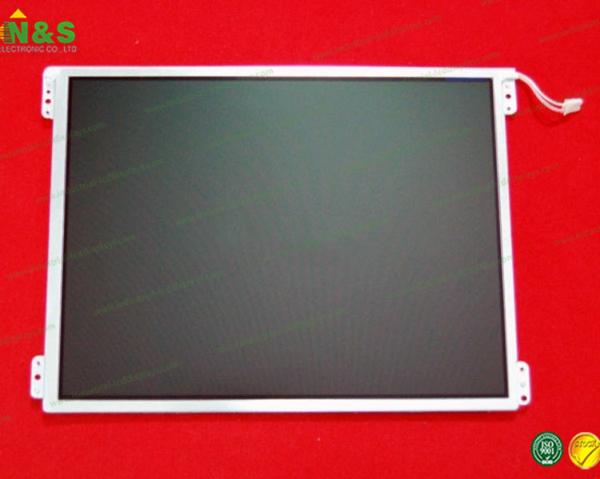

Normally White 10.4 inch LTD104KA1S TFT LCD Module Toshiba with 210.432×157.824 mm Outline 238.6×173.2 mm
Normally White 10.4 inch LTD104KA1S TFT LCD Module Toshiba with 210.432×157.824 mm Outline 238.6×173.2 mm
Normally White 10.4 inch LTD104KA1S TFT LCD Module Toshiba with 210.432×157.824 mm Outline 238.6×173.2 mm
Normally White 10.4 inch LTD104KA1S TFT LCD Module Toshiba with 210.432×157.824 mm Outline 238.6×173.2 mm
Specifications
Brand Name :
Toshiba
Model Number :
LTD104KA1S
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
LTPS TFT-LCD
Panel Size :
10.4 inch
Resolution :
1024×768
Active Area :
210.432×157.824 mm
Outline :
238.6×173.2 mm
Display Colors :
262K (6-bit)
Description

Normally White 10.4 inch LTD104KA1S TFT LCD Module Toshiba with 210.432×157.824 mm Outline 238.6×173.2 mm

Our Promise for our LCD Panels:

You will get reply within 24 Hours and:

ΠYear warranty

ΠDay shipping

‹ Return

LTD104KA1S Basic Information

Panel Model LTD104KA1S
Panel Brand Toshiba Matsushita
Descrition LTPS TFT-LCD ,10.4 inch, 1024×768
Panel Type LTPS TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks Digitizer easy insertion design, Mechanical Compatible with LTM10C321K/T Series.

LTD104KA1S Mechanical Features

Dot Resolution 1024(RGB)×768 (XGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 123 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0685×0.2055 mm (H×V)
Pixel Pitch 0.2055×0.2055 mm (H×V)
Weight 195g (Typ.)
Active Area 210.432×157.824 mm (H×V)
Bezel Area 215.0×162.5 mm (H×V)
Outline Dimension 238.6×173.2 mm (H×V)
Outline Depth 6.8 (Max.) mm
Holes & Brackets Face mounting holes on left, right slugs
Landscape or Portrait Landscape type
Touch Panel Without

LTD104KA1S Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 170 cd/m² (Typ.)
Contrast Ratio 250 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 50/50 (Max.)(Tr/Td)
Viewing Angle 45/45/20/30 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
Sunlight Readable N

Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
CLAG045LJ11 CPT 4.5" 480×854
CLAD027GJ01 00XD CPT 2.7" 320×240
1.22 240RGB204 BOE 1.2" 240×204
CLAG040LM31 CPT 4.0" 480×800
BT040WVG-N60 BOE 4.0" 480×800
BS050HDG-N40-6C00 BOE 5.0" 720×1280
LH450WX3-SH01 LG Display 4.5" 720×1280
TT070WSB-NW1 BOE 7.0" 1024×600
TT070WSB-NW0 BOE 7.0" 1024×600
TT101WSB-NW0 BOE 10.1" 1024×600
C050SWY8-2 IVO 5.0" 480×854
C047SWY2-0 IVO 4.7" 480×854
LC490EQJ-SGE2 LG Display 49" 3840×2160
