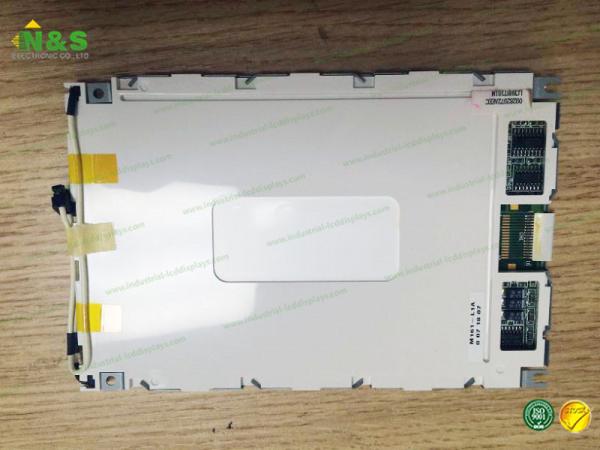

Normally White Industrial LCD Screen EL320.240.36 HB Lumineq 5.7 Inch 320×240 Resolution
Normally White Industrial LCD Screen EL320.240.36 HB Lumineq 5.7 Inch 320×240 Resolution
Specifications
Brand Name :
Lumineq
Model Number :
EL320.240.36 HB
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
Lumineq
Panel Size :
5.7 inch
Resolution :
320×240
Active Area :
115.1×86.3 mm
Outline :
148.1×104.7 mm
Frequency :
60Hz
Description

Normally White EL320.240.36 HB Lumineq 5.7 inch, 320×240 resolution tft lcd display Contrast Ratio 90 : 1 (Typ.)

EL320.240.36 HB Basic Information

  • Panel Model EL320.240.36 HB
  • Panel Brand Lumineq
  • Descrition EL ,5.7 inch, 320×240
  • Panel Type EL
  • Model Alias 996-0292-00, 996-0292-00LF
  • Operating Temperature -40 ~ 85 °C
  • Storage Temperature -40 ~ 105 °C
  • Vibration Resistance 5.0G (49.0 m/s²)
  • Remarks Standard

EL320.240.36 HB Mechanical Features

  • Dot Resolution 320×240 (QVGA)
  • Pixel Configuration Rectangle
  • Pixel Density 70 PPI
  • Aspect Ratio 4:3 (H:V)
  • Form Factor Flat Rectangle Display
  • Dot Pitch 0.36×0.36 mm (H×V)
  • Pixel Pitch 0.36×0.36 mm (H×V)
  • Weight 183g
  • Active Area 115.1×86.3 mm (H×V)
  • Outline Dimension 148.1×104.7 mm (H×V)
  • Outline Depth 20 mm
  • Holes & Brackets Face mounting holes (3-Φ3.2, 2-R1.6×4.2)
  • Landscape or Portrait Landscape type
  • Touch Panel Without

EL320.240.36 HB Optical Features

  • Brightness 150 cd/m² (Typ.)
  • Contrast Ratio 90 : 1 (Typ.) (Transmissive)
  • Display Color Mono(Yellow) (1-bit)
  • Response Time 1 (Max.)
  • Viewing Angle 89/89/89/89 (Typ.) (L/R/U/D)
  • Viewing Direction Symmetry
  • White Variation 1.54 (Max.)(5 points)
  • Sunlight Readable Y

What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.

After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LC645DU2A PANDA 65" 1920×1080
ST3151A05-8 CSOT 31.5" 1366×768
ST2751A01-7 CSOT 27.5" 1366×768
PG045IC-01D Innolux 4.5" 720×1280
LC550DUJ-SGE3 LG Display 55" 1920×1080
LC490DUJ-SGE3 LG Display 49" 1920×1080
BP101WX7-100 BOE 10.1" 1280×800
TT4851D01-2 CSOT 49" 3840×2160
ST4851D01-3 CSOT 49" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800
