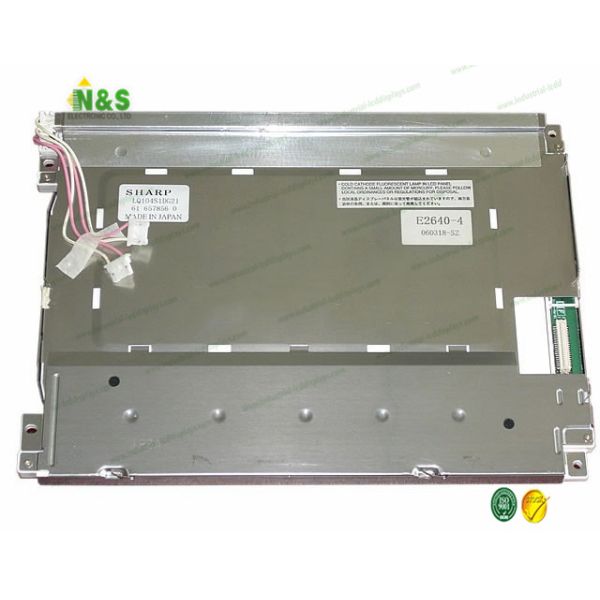

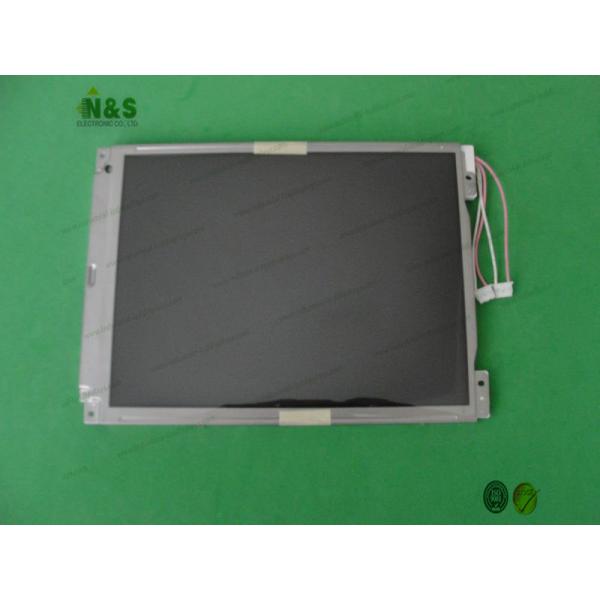

LQ104S1DG21 Sharp Replacement Lcd Panel A-Si TFT-LCD 10.4 Inch 800×600 For Medical Imaging
LQ104S1DG21 Sharp Replacement Lcd Panel A-Si TFT-LCD 10.4 Inch 800×600 For Medical Imaging
LQ104S1DG21 Sharp Replacement Lcd Panel A-Si TFT-LCD 10.4 Inch 800×600 For Medical Imaging
LQ104S1DG21 Sharp Replacement Lcd Panel A-Si TFT-LCD 10.4 Inch 800×600 For Medical Imaging
LQ104S1DG21 Sharp Replacement Lcd Panel A-Si TFT-LCD 10.4 Inch 800×600 For Medical Imaging
LQ104S1DG21 Sharp Replacement Lcd Panel A-Si TFT-LCD 10.4 Inch 800×600 For Medical Imaging
Specifications
Brand Name :
SHARP
Model Number :
LQ104S1DG21
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
LQ104S1DG21
Panel Brand :
SHARP
Descrition :
800×600
Panel Type :
a-Si TFT-LCD
Active Area :
211.2×158.4 mm
Outline :
246.5×179.4 mm
Description

LQ104S1DG21 SHARP a-Si TFT-LCD ,10.4 inch, 800×600 for Medical Imaging

LQ104S1DG21 Basic Information

Panel Model LQ104S1DG21
Panel Brand SHARP
Descrition a-Si TFT-LCD ,10.4 inch, 800×600
Panel Type a-Si TFT-LCD
Operating Temperature -10 ~ 65 °C
Storage Temperature -30 ~ 70 °C
Remarks LAST SHIP DATE:8 July 2011

Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.

LQ104S1DG21 Mechanical Features

Dot Resolution 800(RGB)×600 (SVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 96 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.088×0.264 mm (H×V)
Pixel Pitch 0.264×0.264 mm (H×V)
Weight 620g (Max.)
Surface Antiglare, Hard coating (3H), Antireflection
Active Area 211.2×158.4 mm (H×V)
Bezel Area 214.6×162.4 mm (H×V)
Outline Dimension 246.5×179.4 mm (H×V)
Outline Depth 15.5 (Max.) mm
Holes & Brackets Face mounting holes (2-Φ3.4, 2-3.4×4.4)
Landscape or Portrait Landscape type
Touch Panel Without

Our Services

Payment:

(1) Bank transfer , Western Union , T/T, Paypal are accepted.

(2) If any problem of payment, you can contact with us.

Shipment:

LQ104S1DG21 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 350 cd/m² (Typ.)
Contrast Ratio 300 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 10/25 (Typ.)(Tr/Td)
Viewing Angle 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.45 (Max.)(5 points)
Sunlight Readable N

Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship

LQ104S1DG21 Electronics Feature

Reverse Scan Yes (U/D, L/R)
Total Power Consumption 6.5W

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LM019LC1S17 SHARP 1.9" 128×160
LM014LC1S02 SHARP 1.4" 96×108
LM64P89N SHARP 10.4" 640×480
LM084SS1T01 SHARP 8.4" 800×600
LM64P83 SHARP 9.4" 640×480
LM12S029 SHARP 12.1" 800×600
LM12S389 SHARP 12.1" 800×600
LM094YS1T64 SHARP 9.4" 800×480

We also have other industrial LCD panels, pls contact to us for the further information

.
