17.0 Inch Medical LCD Display G170ETN02.0 AUO A-Si TFT-LCD 1280×1024 Descrition
17.0 Inch Medical LCD Display G170ETN02.0 AUO A-Si TFT-LCD 1280×1024 Descrition
17.0 Inch Medical LCD Display G170ETN02.0 AUO A-Si TFT-LCD 1280×1024 Descrition
17.0 Inch Medical LCD Display G170ETN02.0 AUO A-Si TFT-LCD 1280×1024 Descrition
17.0 Inch Medical LCD Display G170ETN02.0 AUO A-Si TFT-LCD 1280×1024 Descrition
17.0 Inch Medical LCD Display G170ETN02.0 AUO A-Si TFT-LCD 1280×1024 Descrition
Specifications
Brand Name :
AUO
Model Number :
G170ETN02.0
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
G170ETN02.0
Panel Brand :
AUO
Descrition :
1280×1024
Panel Type :
a-Si TFT-LCD
Active Area :
337.92×270.336 mm
Outline :
358.5×296.5 mm
Description

G170ETN02.0 AUO a-Si TFT-LCD ,17.0 inch, 1280×1024 for Medical Imaging

G170ETN02.0 Basic Information

Panel Model G170ETN02.0
Panel Brand AUO
Descrition a-Si TFT-LCD ,17.0 inch, 1280×1024
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 85 °C
Storage Temperature -30 ~ 85 °C

Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.

G170ETN02.0 Mechanical Features

Dot Resolution 1280(RGB)×1024 (SXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 96 PPI
Aspect Ratio 5:4 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.088×0.264 mm (H×V)
Pixel Pitch 0.264×0.264 mm (H×V)
Weight 1.59Kgs (Max.)
Surface Antiglare, Hard coating (3H)
Active Area 337.92×270.336 mm (H×V)
Bezel Area 341.6×274.0 mm (H×V)
Outline Dimension 358.5×296.5 mm (H×V)
Outline Depth 12.45 (Typ.) mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

Payment:

(1) Bank transfer , Western Union , T/T, Paypal are accepted.

(2) If any problem of payment, you can contact with us.

Shipment:

G170ETN02.0 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Color Gamut 90% NTSC (CIE1931)
Response Time TBD
Viewing Angle 80/80/60/70 (Typ.)(CR≥10) (L/R/U/D)
White Variation 1.25/1.33 (Typ./Max.)(9 points)
Sunlight Readable N

Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

G170ETN02.0 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 18.4W (Typ.)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
A090XE02 V3 AUO 9.0" 1024×768
A060SE02 VC AUO 6.0" 800×600
A060SE02 V9 AUO 6.0" 800×600
A021AE01 V0 AUO 2.1"
A029AE01 V1 AUO 2.9" 230×90
A020AE01 V1 AUO 2.0" 172×72
A060SE02 V7 AUO 6.0" 800×600
A060SE02 V6 AUO 6.0" 800×600

We also have other industrial LCD panels, pls contact to us for the further information

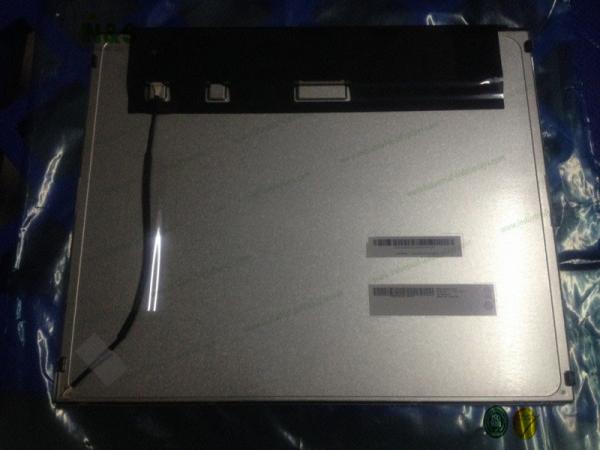

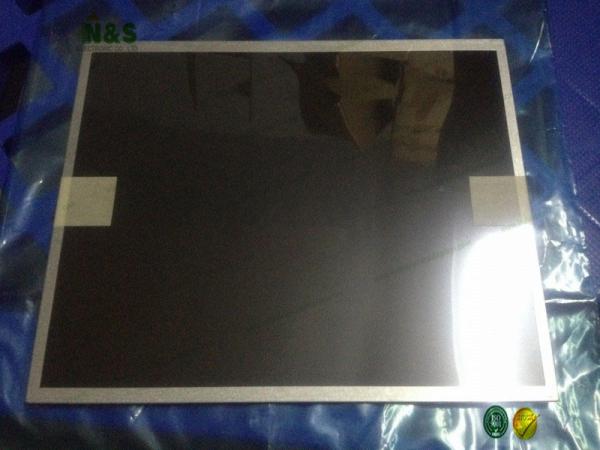

G170ETN02.0 pictures
