TX17D02VM2CPA HITACHI Medical Touch Screen Monitor A-Si TFT-LCD 6.5 Inch 640×480
TX17D02VM2CPA HITACHI Medical Touch Screen Monitor A-Si TFT-LCD 6.5 Inch 640×480
TX17D02VM2CPA HITACHI Medical Touch Screen Monitor A-Si TFT-LCD 6.5 Inch 640×480
TX17D02VM2CPA HITACHI Medical Touch Screen Monitor A-Si TFT-LCD 6.5 Inch 640×480
Specifications
Brand Name :
HITACHI
Model Number :
TX17D02VM2CPA
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
TX17D02VM2CPA
Panel Brand :
HITACHI
Descrition :
640×480
Panel Type :
a-Si TFT-LCD
Active Area :
132.48×99.36 mm
Outline :
153×118 mm
Description

New and original TX17D02VM2CPA HITACHI a-Si TFT-LCD ,6.5 inch, 640×480 for Medical Imaging

TX17D02VM2CPA Basic Information

Panel Model TX17D02VM2CPA
Panel Brand HITACHI
Descrition a-Si TFT-LCD ,6.5 inch, 640×480
Panel Type a-Si TFT-LCD
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C
Vibration Resistance 2.0G (19.6 m/s²)

Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.

TX17D02VM2CPA Mechanical Features

Dot Resolution 640(RGB)×480 (VGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 122 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.069×0.207 mm (H×V)
Pixel Pitch 0.207×0.207 mm (H×V)
Weight 240g (Typ.)
Surface Antiglare
Active Area 132.48×99.36 mm (H×V)
Bezel Area 135.9×102.8 mm (H×V)
Outline Dimension 153×118 mm (H×V)
Outline Depth 10.2 (Typ.) mm
Holes & Brackets Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Embeded (4-wire Resistive, Film / Glass)

Packaging & Delivery

Packaging Details:

Antistatic bag + Bubble bag + Foam box + Carton box

Delivery Detail:

1-3 working days after payment confirmed

TX17D02VM2CPA Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 480 cd/m² (Typ.)
Contrast Ratio 600 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 50% NTSC (CIE1931)
Response Time 30 (Typ.)(Tr+Td)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.300; Wy:0.310
White Variation 1.43 (Max.)(9 points)
Sunlight Readable N

Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day

TX17D02VM2CPA Electronics Feature

Vertical Frequency 60Hz
Reverse Scan Yes (180°)
Total Power Consumption 4.72W (Typ.)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LMG9200XUCC KOE 9.4" 640×480
LMG7420PLFC KOE 5.1" 240×128
LMG5320XUFC KOE 7.2" 640×480
LMG6402PLFR KOE 5.1" 240×128
LMG6401PLGE KOE 5.1" 240×128
LMG6400PLGR KOE 5.1" 240×128
LMG7380QHFC KOE 4.8" 256×64
LMG6391QHGE KOE 4.8" 256×64

We also have other industrial LCD panels, pls contact to us for the further information

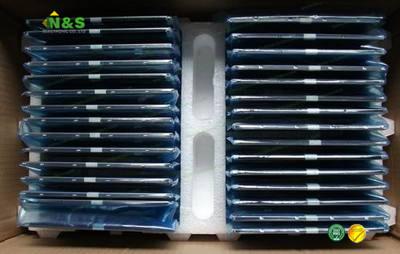

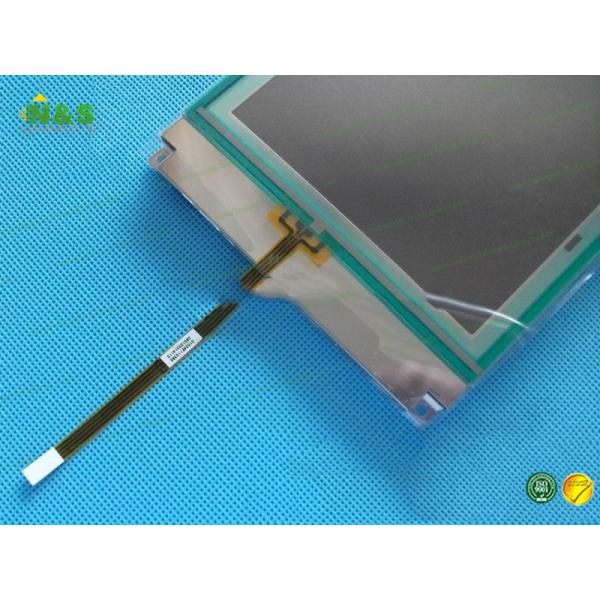

TX17D02VM2CPA pictures
