12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO
12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO
12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO
12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO
12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO
12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO
Specifications
Brand Name :
CMO
Model Number :
G121S1-L01
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
G121S1-L01
Panel Brand :
CMO
Descrition :
800×600
Panel Type :
a-Si TFT-LCD
Active Area :
246×184.5 mm
Outline :
260.5×204×12.7 mm
Description

G121S1-L01 CMO a-Si TFT-LCD ,12.1 inch, 800×600 for Industrial Application

G121S1-L01 Basic Information

Panel Model G121S1-L01
Panel Brand CMO
Descrition a-Si TFT-LCD ,12.1 inch, 800×600
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 70 °C
Storage Temperature -40 ~ 80 °C

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.

G121S1-L01 Mechanical Features

Dot Resolution 800(RGB)×600 (SVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 82 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.1025×0.3075 mm (H×V)
Pixel Pitch 0.3075×0.3075 mm (H×V)
Weight 660g (Max.)
Surface Antiglare (Haze 25%), Hard coating (3H)
Active Area 246×184.5 mm (H×V)
Bezel Area 249.0×187.5 mm (H×V)
Outline Dimension 260.5×204 mm (H×V)
Outline Depth 12.2±0.5 mm
Holes & Brackets Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

Our Services

Payment:

(1) Bank transfer , Western Union , T/T, Paypal are accepted.

(2) If any problem of payment, you can contact with us.

G121S1-L01 Optical Features

Display Mode Super MVA, Normally Black, Transmissive
Brightness 450 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 13/12 (Typ.)(Tr/Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.326; Wy:0.340
White Variation 1.25/1.40 (Typ./Max.)(5 points)
Sunlight Readable N

Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.

G121S1-L01 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan Yes (U/D, L/R)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
F07017-03D Innolux 7.0" 800×480
85C02007-001 Innolux 2.0" 240×320
V645HQ1-PE1 Innolux 65" 1920×1080
V460HK2-PS1 Innolux 46" 1920×1080
V320BK1-PS5 Innolux 31.5" 1366×768
V500HK1-PE6 Innolux 50" 1920×1080
V500HK1-PE1 Innolux 50" 1920×1080
V420H2-PS2 Rev.C7 Innolux 42" 1920×1080

We also have other industrial LCD panels, pls contact to us for the further information

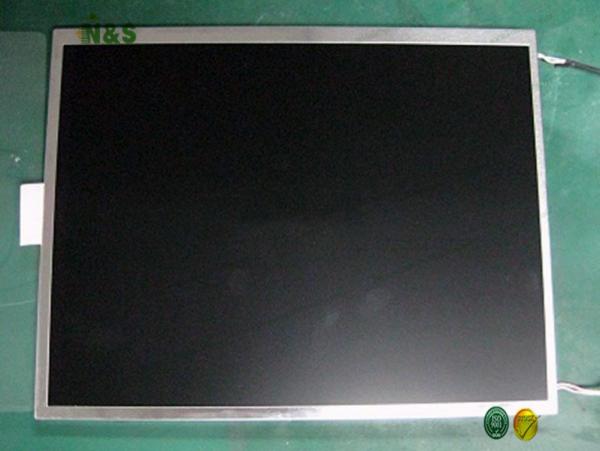

G121S1-L01 pictures
