Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch
Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch
Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch
Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch
Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch
Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch
Specifications
Brand Name :
CMO
Model Number :
G133I1-L01
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
G133I1-L01
Panel Brand :
CMO
Descrition :
1280×800
Panel Type :
a-Si TFT-LCD
Active Area :
286.08×178.8 mm
Outline :
304.6×195×8 mm
Description

New and original G133I1-L01 CMO a-Si TFT-LCD ,13.3 inch, 1280×800 for Industrial Application

G133I1-L01 Basic Information

Panel Model G133I1-L01
Panel Brand CMO
Descrition a-Si TFT-LCD ,13.3 inch, 1280×800
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.

G133I1-L01 Mechanical Features

Dot Resolution 1280(RGB)×800 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 113 PPI
Aspect Ratio 16:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0745×0.2235 mm (H×V)
Pixel Pitch 0.2235×0.2235 mm (H×V)
Weight 450/465g (Typ./Max.)
Surface Antiglare (Haze 25%)
Active Area 286.08×178.8 mm (H×V)
Bezel Area 289.1×181.8 mm (H×V)
Outline Dimension 304.6×195 mm (H×V)
Outline Depth 7.7/8.0 (Typ./Max.) mm
Holes & Brackets Side mounting holes (6-M2) on left, right bezel; Face mounting holes (3 pcs) on left, right slugs
Landscape or Portrait Landscape type
Touch Panel Without

Our Services

Payment:

(1) Bank transfer , Western Union , T/T, Paypal are accepted.

(2) If any problem of payment, you can contact with us.

G133I1-L01 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 400 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 6/10 (Typ.)(Tr/Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.45 (Max.)(5 points)
Sunlight Readable N

Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

G133I1-L01 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
V400DK1-QS1 Innolux 40" 3840×2160
V500HJ1-PE6 Innolux 50" 1920×1080
V580DK1-PS1 Innolux 58" 3840×2160
F04004-03Z Innolux 4.0" 480×800
V546HK7-PS1 Innolux 55" 1920×1080
V650DK1-PS1 Innolux 65" 3840×2160
V645H1-PE1 Innolux 65" 1920×1080
Q0A411-601 Innolux 10.4" 800×600

We also have other industrial LCD panels, pls contact to us for the further information

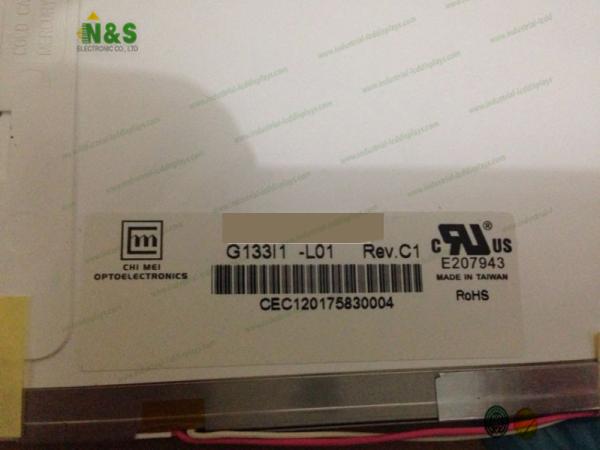

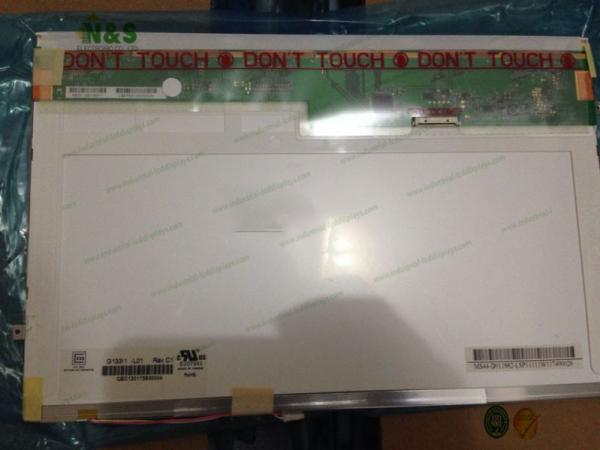

G133I1-L01 pictures

Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 InchIndustrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 InchIndustrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch
