2.8 Inch Industrial Flat Panel Display , Tft Lcd Industry TD028STEB2 TPO LTPS
2.8 Inch Industrial Flat Panel Display , Tft Lcd Industry TD028STEB2 TPO LTPS
2.8 Inch Industrial Flat Panel Display , Tft Lcd Industry TD028STEB2 TPO LTPS
2.8 Inch Industrial Flat Panel Display , Tft Lcd Industry TD028STEB2 TPO LTPS
Specifications
Brand Name :
TPO
Model Number :
TD028STEB2
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
TD028STEB2
Panel Brand :
TPO
Descrition :
240×320
Panel Type :
LTPS TFT-LCD
Active Area :
43.2×57.6 mm
Outline :
52.9×71.7 mm
Description

TD028STEB2 TPO LTPS TFT-LCD ,2.8 inch, 240×320 for Industrial Application

TD028STEB2 Basic Information

Panel Model TD028STEB2
Panel Brand TPO
Descrition LTPS TFT-LCD ,2.8 inch, 240×320
Panel Type LTPS TFT-LCD
Operating Temperature -20 ~ 60 °C
Storage Temperature -30 ~ 70 °C
Remarks 3 in 1 FPC

Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days

TD028STEB2 Mechanical Features

Dot Resolution 240(RGB)×320 (QVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 141 PPI
Aspect Ratio 3:4 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.060×0.180 mm (H×V)
Pixel Pitch 0.180×0.180 mm (H×V)
Weight 35g (Max.)
Active Area 43.2×57.6 mm (H×V)
Outline Dimension 52.9×71.7 mm (H×V)
Outline Depth 4.2 (Typ.) mm
Landscape or Portrait Portrait type
Touch Panel Embeded (4-wire Resistive)

Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

(3) We will do our best to solve any possible problem for your after sale. Please contact to us.

Return and Refund:

TD028STEB2 Optical Features

Display Mode TN, Normally White, Transflective
Brightness 150 cd/m² (Typ.)
Contrast Ratio 10:1 (Typ.) (Reflective)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 35 (Typ.)(Tr+Td)
Viewing Angle 40/45/60/35 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity Wx:0.295; Wy:0.323
White Variation 1.25/1.33 (Typ./Max.)(9 points)
Reflectance Ratio 5/10% (Min./Typ.)
Sunlight Readable Y

Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2.Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

TD028STEB2 Electronics Feature

Reverse Scan No
Total Power Consumption 311mW (Typ.)

Below are our other LCD panels stock for your easy reference:

TF022TUYC8 TPO 2.2" 240×320
TF020TUVB2 TPO 2.0" 176×220
TE025THZB4 TPO 2.5" 640×240
AP030NUWC01 TPO 3.0" 960×480(dot)
TF020TUYB1 TPO 2.0" 176×220
TF018TUYR1 TPO 1.8" 128×160
TF018TUYG1 TPO 1.8" 128×160
T026TVE001 TPO 2.6" 240×320

We also have other industrial LCD panels, pls contact to us for the further information

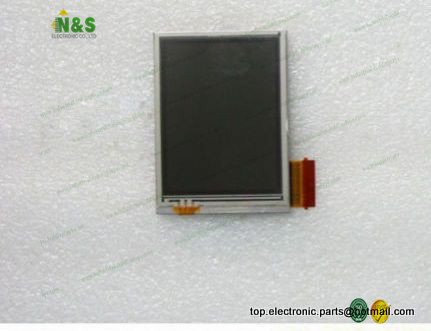

TD028STEB2 pictures

2.8 Inch Industrial Flat Panel Display , Tft Lcd Industry TD028STEB2 TPO LTPS2.8 Inch Industrial Flat Panel Display , Tft Lcd Industry TD028STEB2 TPO LTPS
