3.5 Inch 240×320 NEC LCD Panel A-Si TFT-LCD NL2432HC22-41B Industrial Application
3.5 Inch 240×320 NEC LCD Panel A-Si TFT-LCD NL2432HC22-41B Industrial Application
3.5 Inch 240×320 NEC LCD Panel A-Si TFT-LCD NL2432HC22-41B Industrial Application
3.5 Inch 240×320 NEC LCD Panel A-Si TFT-LCD NL2432HC22-41B Industrial Application
3.5 Inch 240×320 NEC LCD Panel A-Si TFT-LCD NL2432HC22-41B Industrial Application
3.5 Inch 240×320 NEC LCD Panel A-Si TFT-LCD NL2432HC22-41B Industrial Application
Specifications
Brand Name :
NEC
Model Number :
NL2432HC22-41B
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
NL2432HC22-41B
Panel Brand :
NEC
Descrition :
240×320
Panel Type :
a-Si TFT-LCD
Active Area :
53.64×71.52 mm
Outline :
63.5×85×5.7 mm
Description

NL2432HC22-41B NEC a-Si TFT-LCD ,3.5 inch, 240×320 for Industrial Application

NL2432HC22-41B Basic Information

Panel Model NL2432HC22-41B
Panel Brand NEC
Descrition a-Si TFT-LCD ,3.5 inch, 240×320
Panel Type a-Si TFT-LCD
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C
Vibration Resistance 2.0G (19.6 m/s²)
Remarks R-EVT (SR-NLT), left side 3 in 1 FPC (15mm)

Packaging & Delivery

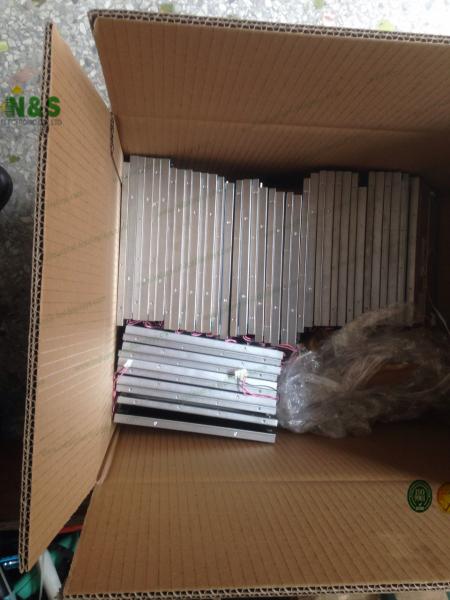

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.

NL2432HC22-41B Mechanical Features

Dot Resolution 240(RGB)×320 (QVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 113 PPI
Aspect Ratio 3:4 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0745×0.2235 mm (H×V)
Pixel Pitch 0.2235×0.2235 mm (H×V)
Weight 43/45g (Typ./Max.)
Surface Clear, Hard coating (3H)
Active Area 53.64×71.52 mm (H×V)
Bezel Area 57.64×76.52 mm (H×V)
Outline Dimension 63.5×85 mm (H×V)
Outline Depth 4.2/5.7 (Typ./Max.) mm
Landscape or Portrait Portrait type
Touch Panel Embeded (4-wire Resistive)

Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

(3) We will do our best to solve any possible problem for your after sale. Please contact to us.

NL2432HC22-41B Optical Features

Display Mode TN, Normally White, Transflective
Brightness 200 cd/m² (Typ.)
Contrast Ratio 15:1 (Typ.) (Reflective)
Display Color 262K (6-bit)
Color Gamut 40% NTSC (CIE1931)
Response Time 7/23 (Typ.)(Tr/Td)
Viewing Angle 30/30/30/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.300; Wy:0.320
White Variation 1.43/1.67 (Typ./Max.)(9 points)
Reflectance Ratio 15% (Typ.)
Sunlight Readable Y

Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

NL2432HC22-41B Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 434mW (Typ.)
Time Controller (T-CON) Embedded T-CON

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
NL160120AC26-01A NLT 20.3" 1600×1200
NL160120AC26-01 NLT 20.3" 1600×1200
NL12876BC26-25B NLT 15.3" 1280×768
NL12876BC26-22F NLT 15.3" 1280×768
NL12876BC26-22E NLT 15.3" 1280×768
NL12876BC26-22D NLT 15.3" 1280×768
NL12876BC26-22 NLT 15.3" 1280×768
NL12876BC26-21 NLT 15.3" 1280×768

We also have other industrial LCD panels, pls contact to us for the further information

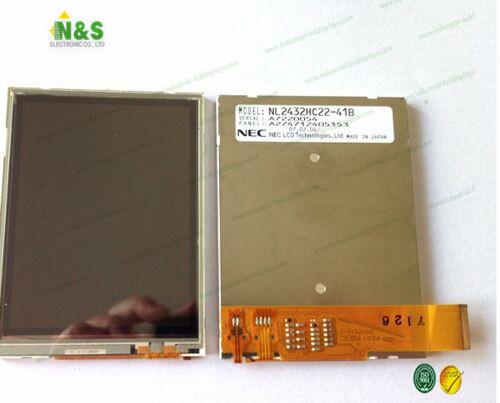

NL2432HC22-41B pictures

3.5 Inch 240×320 NEC LCD Panel A-Si TFT-LCD NL2432HC22-41B Industrial Application3.5 Inch 240×320 NEC LCD Panel A-Si TFT-LCD NL2432HC22-41B Industrial Application3.5 Inch 240×320 NEC LCD Panel A-Si TFT-LCD NL2432HC22-41B Industrial Application
