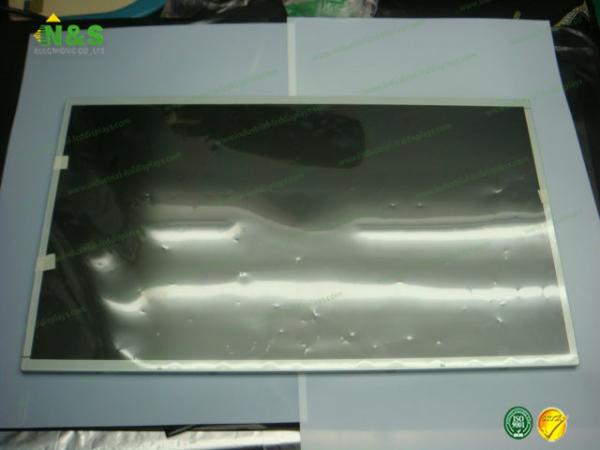

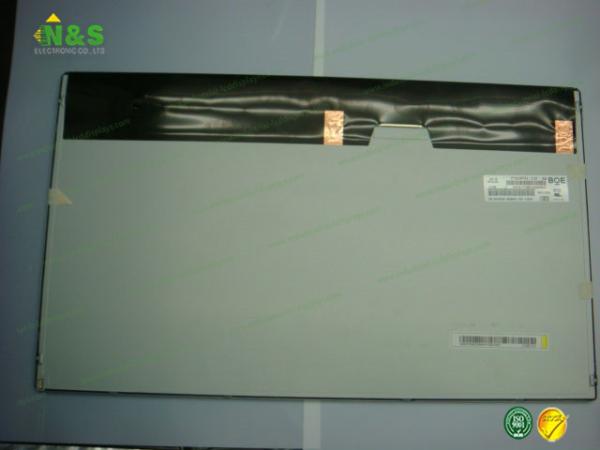

60Hz Industrial LCD Displays BOE HT215F01-100 21.5 Inch A-Si TFT-LCD 1920×1080
60Hz Industrial LCD Displays BOE HT215F01-100 21.5 Inch A-Si TFT-LCD 1920×1080
60Hz Industrial LCD Displays BOE HT215F01-100 21.5 Inch A-Si TFT-LCD 1920×1080
60Hz Industrial LCD Displays BOE HT215F01-100 21.5 Inch A-Si TFT-LCD 1920×1080
Specifications
Brand Name :
BOE
Model Number :
HT215F01-100
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
21.5 inch
Resolution :
1920×1080
Active Area :
476.64×268.11 mm
Contrast Ratio :
1000:1 (Typ.)
Frequency :
60Hz
Input Voltage :
5.0V (Typ.)
Description

Normally White BOE HT215F01-100 21.5 inch a-Si TFT-LCD 1920×1080 Outline 495.6×292.2×10.7 mm

HT215F01-100 Basic Information

Panel Model HT215F01-100
Panel Brand BOE
Descrition a-Si TFT-LCD ,21.5 inch, 1920×1080
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks Normal version: 4850, 4D30; For Samsung version: 4851, 4D31; For Dell version: 4852; F-grade version: 4FFF.

HT215F01-100 Mechanical Features

Dot Resolution 1920(RGB)×1080 (FHD)
Pixel Configuration RGB Vertical Stripe
Pixel Density 102 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.08275×0.24825 mm (H×V)
Pixel Pitch 0.24825×0.24825 mm (H×V)
Weight 1.79Kgs (Typ.)
Surface Antiglare (Haze 25%), Hard coating (3H)
Active Area 476.64×268.11 mm (H×V)
Bezel Area 479.8×271.3 mm (H×V)
Outline Dimension 495.6×292.2 mm (H×V)
Outline Depth 7.7/10.7 (Typ./Max.) mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!

Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
BP070WS1-600 BOE 7.0" 1024×600
HV480WU2-302 BOE 48" 1920×1080
HV480WU2-301 BOE 48" 1920×1080
1.22 240RGB204 BOE 1.2" 240×204
BT040WVG-N60 BOE 4.0" 480×800
BS050HDG-N40-6C00 BOE 5.0" 720×1280
TT070WSB-NW1 BOE 7.0" 1024×600
TT070WSB-NW0 BOE 7.0" 1024×600
TT101WSB-NW0 BOE 10.1" 1024×600
TT070WSQ-N10 BOE 7.0" 1024×600

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
