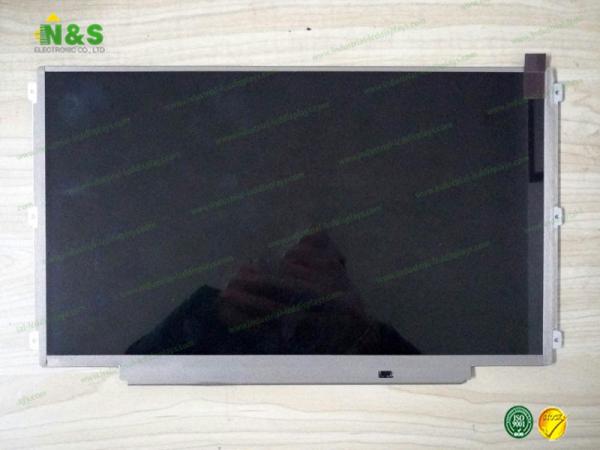

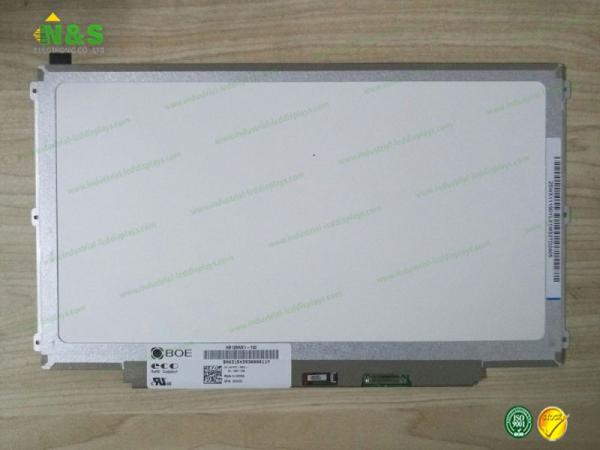

HB125WX1-100 Industrial LCD Touch Screen Monitor Resolution 1366×768 Tft Panel
HB125WX1-100 Industrial LCD Touch Screen Monitor Resolution 1366×768 Tft Panel
HB125WX1-100 Industrial LCD Touch Screen Monitor Resolution 1366×768 Tft Panel
HB125WX1-100 Industrial LCD Touch Screen Monitor Resolution 1366×768 Tft Panel
Specifications
Brand Name :
BOE
Model Number :
HB125WX1-100
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
HB125WX1-100
Panel Brand :
BOE
Outline :
300.4×179.5×3.6 mm
Surface :
Antiglare
Description

HB125WX1-100 BOE 12.5 Inch resolution 1366×768 tft Lcd Panel Active Area 276.615×155.52 mm

HB125WX1-100 Basic Information

Panel Model HB125WX1-100
Panel Brand BOE
Descrition a-Si TFT-LCD ,12.5 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

HB125WX1-100 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 125 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0675×0.2025 mm (H×V)
Pixel Pitch 0.2025×0.2025 mm (H×V)
Weight 280g (Max.)
Surface Antiglare
Active Area 276.615×155.52 mm (H×V)
Bezel Area 280.215×158.92 mm (H×V)
Outline Dimension 300.4×179.5 mm (H×V)
Outline Depth 3.6 (Max.) mm
Shape Style Flat (PCBA Flat, Depth 3.4~4.0mm)
Holes & Brackets Face mounting holes (6 pcs) on left, right slugs
Landscape or Portrait Landscape type
Touch Panel Without

Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days

Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

HB125WX1-100 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 50% NTSC (CIE1931)
Response Time 16 (Typ.)(Tr+Td)
Viewing Angle 45/45/20/20 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.54 (Max.)(5/13 points)
Sunlight Readable N

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
TV079X0S-NA0 BOE 7.9" 768×1024
BA070WV2-100 BOE 7.0" 800×480
TV070WSG-N80 BOE 7.0" 600×1024
TT070WSQ-N80 BOE 7.0" 600×1024
BV055FHM-N00 BOE 5.5" 1080×1920
BA035HV3-800 BOE 3.5" 320×480
BF050HDQ-100 BOE 5.0" 720×1280
BT045FWQ-N80 BOE 4.5" 480×854
BS050HDE-N41-6Q00 BOE 5.0" 720×1280
BV050HDE-N44 BOE 5.0" 720×1280
HV320FHB-N10 BOE 31.5" 1920×1080
TV070WSU-N10 BOE 7.0" 1024×600

Pls contact to us for more stock information: salespm@nselectronic.com.hk
