Hard coating MT4601B02-1 CSOT LCD Module 46 inch for TV Sets panel
Hard coating MT4601B02-1 CSOT LCD Module 46 inch for TV Sets panel
Specifications
Brand Name :
CSOT
Model Number :
MT4601B02-1
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Signal Interface :
LVDS (2 ch, 8-bit) , 51 pins
Active Area :
1018.08×572.67 mm
Outline :
1054.9×610.8 mm
Resolution :
1920(RGB)×1080 , FHD
Supply Ability :
500PCS/DAY
Description

Hard coating MT4601B02-1 CSOT LCD Module 46 inch for TV Sets panel

MT4601B02-1 CSOT LCD Module Detail

Panel Brand : CSOT
Panel Model : MT4601B02-1
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 46 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : HVA, Normally Black, Transmissive
Active Area : 1018.08×572.67 mm
Outline : 1054.9×610.8 mm
Surface : Antiglare (Haze 2%), Hard coating (2H)
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 4000:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 6.5 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (2 ch, 8-bit) , 51 pins
Input Voltage : 12.0V (Typ.)

Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.

Packaging & Shipping for Our LCD panel

1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.

2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.

Other shipping terms can also be arranged according to specific requirements.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
ST4851B01-1 CSOT 49" 1920×1080
ST5461D01-4 CSOT 55" 3840×2160
ST5461B05-6 CSOT 55" 1920×1080
ST2151B01-1 CSOT 21.5" 1920×1080
ST4251B01-1 CSOT 43" 1920×1080
ST4761B01-7 CSOT 48" 1920×1080
ST5461D04-2 CSOT 55" 3840×2160
ST4761B02-1 CSOT 48" 1920×1080
ST5461D02-1 CSOT 55" 3840×2160
ST2751A01-8 CSOT 27.5" 1366×768
ST3151A05-9 CSOT 31.5" 1366×768
ST2751A01-6 CSOT 27.5" 1366×768
ST5461B05-2 CSOT 55" 1920×1080

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Panel Size : 46 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 47 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.17675×0.53025 mm (H×V)
Pixel Pitch : 0.53025×0.53025 mm (H×V)
Weight : 9.5Kgs (Max.)
Surface : Antiglare (Haze 2%), Hard coating (2H)
Active Area : 1018.08×572.67 mm (H×V)
Bezel Area : 1024.9×579.3 mm (H×V)
Outline Dimension : 1054.9×610.8 mm (H×V)
Outline Depth : 10.8 mm
Landscape or Portrait : Landscape type
Touch Panel : Without

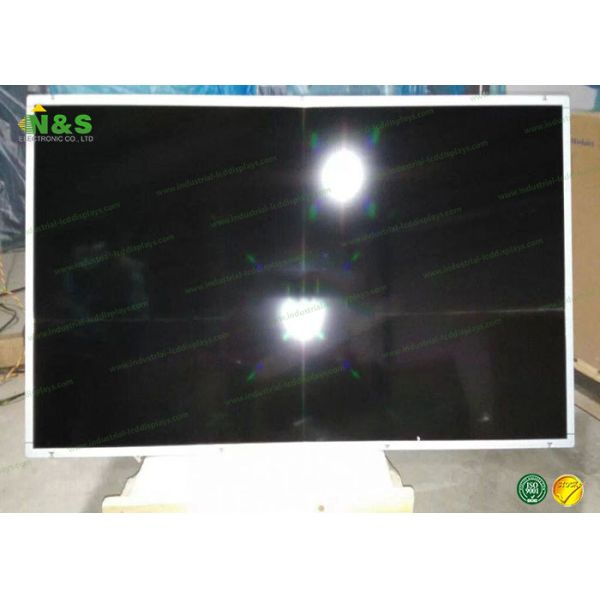

MT4601B02-1 CSOT LCD Module Picture
