7.0 Inch Normally Black Innolux LCD Panel N070ICE - GB1 for Pad / Tablet panel
7.0 Inch Normally Black Innolux LCD Panel N070ICE - GB1 for Pad / Tablet panel
Specifications
Brand Name :
Innolux
Model Number :
N070ICE-GB1
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Supply Ability :
500PCS/DAY
Display Mode :
IPS, Normally Black, Transmissive
Active Area :
94.2×150.72 mm
Display Colors :
16.7M (8-bit)
Response Time :
14/11 (Typ.)(Tr/Td)
Frequency :
60Hz
Signal Interface :
MIPI (4 data lanes) , 36 pins
Description

7.0 Inch Normally Black Innolux LCD Panel N070ICE - GB1 for Pad / Tablet panel

N070ICE-GB1 Innolux LCD Panel Specification

Panel Brand : INNOLUX
Panel Model : N070ICE-GB1
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 7.0 inch
Resolution : 800(RGB)×1280 , WXGA
Display Mode : IPS, Normally Black, Transmissive
Active Area : 94.2×150.72 mm
Outline : 105.62×163.27×3.95 mm
Surface : Glare (Haze 0%), Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (8-bit)
Response Time : 14/11 (Typ.)(Tr/Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 3S6P WLED Without Driver
Signal Interface : MIPI (4 data lanes) , 36 pins
Input Voltage : 1.8/3.3V (Typ.)(VCC/VDD)

Panel Size : 7.0 inch
Dot Resolution : 800(RGB)×1280 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 215 PPI
Aspect Ratio : 10:16 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.03925×0.11775 mm (H×V)
Pixel Pitch : 0.11775×0.11775 mm (H×V)
Weight : 90g (Max.)
Surface : Glare (Haze 0%), Hard coating (3H)
Active Area : 94.2×150.72 mm (H×V)
Bezel Area : 97.35×153.82 mm (H×V)
Outline Dimension : 105.62×163.27 mm (H×V)
Outline Depth : 2.4/3.95 (Max.) mm
Holes & Brackets : Without
Landscape or Portrait : Portrait type
Touch Panel : Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

BRAND P/N size quantity
Innolux G104S1-L01 10.4" 500
Innolux G150XGE-L05 15.0" 500
Innolux G057VGE-T01 5.7" 852
Innolux G070Y2-T02 7.0" 2320
Innolux G070Y3-T01 7.0" 1580
Innolux G104S1-L01 10.4" 850
Innolux G141C1-L01 14.1" 450
Innolux R190E6-L01 19.0" 150
Innolux R196U2-L03 19.6" 450

We Can Do for You:

1) One-to-one service with efficient & professional support;

2) Protection of your design and all your private information;

3) We could supply different hard disk for you.

4) Quality stability, can to provide certification of products;

5) Convenient payment methods: PayPal, T/T and Western Union;

6) Speedy shipment: we could arrange the shipment within 1-3 business days.

7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing
  4. Picked up by forward and delivered by express services.

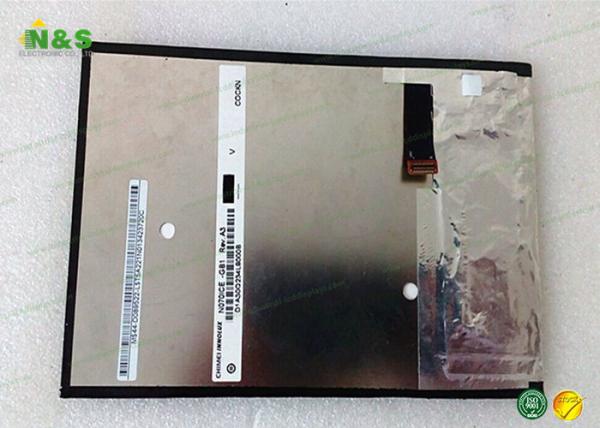

N070ICE-GB1 Innolux LCD Panel Picture

7.0 Inch Normally Black Innolux LCD Panel N070ICE - GB1 for Pad / Tablet panel
