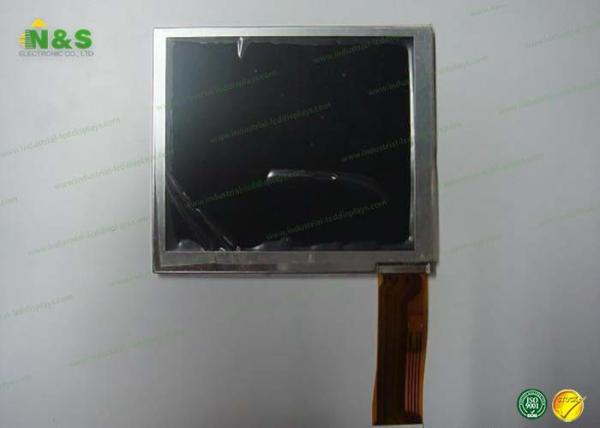

4.0 Inch LTE400WQ-F01 Samsung LCD Panel Normally White for Pocket TV panel
4.0 Inch LTE400WQ-F01 Samsung LCD Panel Normally White for Pocket TV panel
Specifications
Brand Name :
Samsung
Model Number :
LTE400WQ-F01
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1 Piece
Payment Terms :
T/T, Western Union,MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type : :
a-Si TFT-LCD , LCM
Panel Size : :
4.0 inch
Resolution : :
480×272(RGB) , WQVGA
Active Area : :
87.84×49.776 mm
Outline : :
98.3×62.6 mm
Brightness : :
250 cd/m² (Typ.)
Description

4.0 inch LTE400WQ-F01 Samsung Normally White for Pocket TV panel

LTE400WQ-F01 DETAIL

Panel Size : 4.0 inch
Dot Resolution : 480×272(RGB) (WQVGA)
Pixel Configuration : RGB Horizontal Stripe
Pixel Density : 138 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.183×0.061 mm (H×V)
Pixel Pitch : 0.183×0.183 mm (H×V)
Weight : 53/58g (Typ./Max.)
Active Area : 87.84×49.776 mm (H×V)
Outline Dimension : 98.3×62.6 mm (H×V)
Outline Depth : 3.8±0.2 mm
Landscape or Portrait : Landscape type
Touch Panel : Without

LTE400WQ-F01 DETAIL

Signal Category : TTL
Signal Class : Parallel RGB (1 ch, 8-bit)
Input Voltage for Panel : 2.5/3.3V (Typ.)(VDD)
Panel Power Consumption : 80mW (Typ.)
Interface Type : FPC
Signal Interface : Brand Model Pin Pitch Pins Amount Configuration
0.5 mm 40 pins 1 pcs DRGB-40P1C8B-020A

Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AMS497QH05 Samsung 5.0" 720×1280
AMS465GS52 Samsung 4.7" 720×1280
AMS465GS51 Samsung 4.7" 720×1280
AMS465GS47 Samsung 4.7" 720×1280
AMS477GV11 Samsung 4.8" 720×1280
AMS499QP59 Samsung 5.0" 1080×1920
AMS499QP53 Samsung 5.0" 1080×1920
AMS499QP07 Samsung 5.0" 1080×1920

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

LTE400WQ-F01 DETAIL

Amount per Box : 120 pcs
Box Size : 505×355×312 mm (L×W×H)
Box Gross Weight : 11.2 Kgs

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.
