Normally White NL10276AC28-05D NEC LCD Panel 14.1 inch for Desktop Monitor panel
Normally White NL10276AC28-05D NEC LCD Panel 14.1 inch for Desktop Monitor panel
Specifications
Brand Name :
NEC
Model Number :
NL10276AC28-05D
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Supply Ability :
500PCS/DAY
Panel Type :
a-Si TFT-LCD , LCM
Surface :
Hard coating (3H)
Contrast Ratio :
150:1 (Typ.)
Display Colors :
262K (6-bit) , CIE1931 40%
Description

Normally White NL10276AC28-05D NEC LCD Panel 14.1 inch for Desktop Monitor panel

NL10276AC28-05D NEC LCD Panel Detail

Panel Brand : NEC
Panel Model : NL10276AC28-05D
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 14.1 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : TN, Normally White, Transmissive
Active Area : 285.696×214.272 mm
Outline : 330×255×20.5 mm
Surface : Hard coating (3H)
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 150:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 40%
Response Time : 11/40 (Typ.)(Tr/Td)
Viewing Angle : 50/50/20/35 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 2 pcs CCFL Embedded (Inverter)
Signal Interface : LVDS (1 ch, 6-bit) , 20 pins
Input Voltage : 5.0V (Typ.)

Panel Size : 14.1 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 91 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.093×0.279 mm (H×V)
Pixel Pitch : 0.279×0.279 mm (H×V)
Weight : 1.22/1.30Kgs (Typ./Max.)
Surface : Hard coating (3H)
Active Area : 285.696×214.272 mm (H×V)
Bezel Area : 290.4×219.0 mm (H×V)
Outline Dimension : 330×255 mm (H×V)
Outline Depth : 20.0/20.5 (Typ./Max.) mm
Holes & Brackets : Face mounting holes (4-Φ3.5) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

The reasons you choose us

1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.

Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.

Below are our other LCD panels stock for your easy reference:

BRAND P/N size quantity
NEC NL6448BC33-64D 10.4" 60
NEC NL6448AC20-06 6.5" 300
NEC NL3224BC35-20 5.5" 200

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

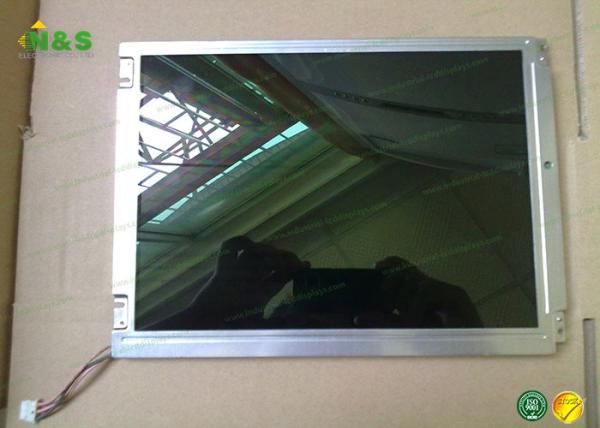

NL10276AC28-05D NEC LCD Panel Picture

Normally White NL10276AC28-05D NEC LCD Panel 14.1 inch for Desktop Monitor panel
