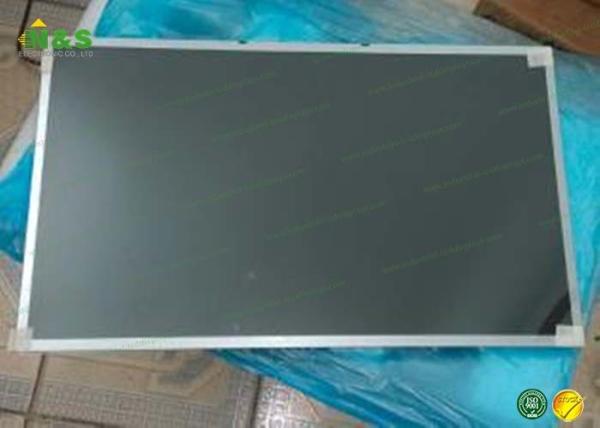

LTM240CL04 Samsung 24.0 inch 518.4×324 mm for Desktop Monitor panel
LTM240CL04 Samsung 24.0 inch 518.4×324 mm for Desktop Monitor panel
Specifications
Brand Name :
Samsung
Model Number :
LTM240CL04
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size : :
24.0 inch
Resolution : :
1920(RGB)×1200 , WUXGA
Display Colors : :
16.7M (6-bit + Hi-FRC) , CIE1931 72%
Viewing Angle : :
89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Description

LTM240CL04 Samsung 24.0 inch 518.4×324 mm for Desktop Monitor panel

LTM240CL04 Information

Panel Size : 24.0 inch
Dot Resolution : 1920(RGB)×1200 (WUXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 94 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.090×0.270 mm (H×V)
Pixel Pitch : 0.270×0.270 mm (H×V)
Weight : 2.80Kgs (Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 518.4×324 mm (H×V)
Bezel Area : 522.6×328.2 mm (H×V)
Outline Dimension : 546.4×350 mm (H×V)
Outline Depth : 11.2 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

LTM240CL04 Information

Lamp Position : Edge light type (Right side)
Lamp Type : WLED
Lamp Amount : 13S3P
Lamp Shape : 3 strings
Lamp Life Time : 40K(Min.) (Hours)
Lamp Voltage : 39.65V (Typ.)
Lamp Current : 360/390mA (Typ./Max.)
Lamps Power Consumption : 14.28W (Typ.)
Interface Type : Connector
Interface Position :
Backlight Interface Brand Model Pin Pitch Pins Amount Configuration
molex 104086-0410 1.25 mm 4 pins 1 pcs BLE-4PINS-ACCC
Lamp Driver Board : No

Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.

Warranty:

1. All panels’ grade is promised strictly same as original factory’s standard.

2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

4. ISO 9001 guarantee.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
SDC 1.63 320×320 Samsung 1.63" 320×320
AMS499QP07 Samsung 5.0" 1080×1920
AMS499QP01 Samsung 5.0" 1080×1920
AMS568AT01 Samsung 5.7" 1440×2560
AMS840CS04 Samsung 8.4" 1600×2560
AMS520BQ04-0 Samsung 5.2" 1080×1920
AMS309PW01-0 Samsung 3.1" 720×720
AMS465GS45 Samsung 4.7" 720×1280
