NL10276BC20-08 NEC LCD Panel 10.4 inch with 210.432×157.824 mm Active Area
NL10276BC20-08 NEC LCD Panel 10.4 inch with 210.432×157.824 mm Active Area
Specifications
Brand Name :
NEC
Model Number :
NL10276BC20-08
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Supply Ability :
500PCS/DAY
Dot Resolution :
1024(RGB)×768 (XGA)
Pixel Configuration :
RGB Vertical Stripe
Pixel Pitch :
0.2055×0.2055 mm (H×V)
Dot Pitch :
0.0685×0.2055 mm (H×V)
Weight :
440/480g (Typ./Max.)
Outline Depth :
10.0±0.5 mm
Holes & Brackets :
Side mounting holes (4 pcs)
Landscape or Portrait :
Landscape type
Description

NL10276BC20-08 NEC LCD Panel 10.4 inch with 210.432×157.824 mm Active Area

NL10276BC20-08 Information

Panel Brand : NEC
Panel Model : NL10276BC20-08
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : SA-SFT, Normally Black, Transmissive
Active Area : 210.432×157.824 mm
Outline : 227×174.5 mm
Surface : Clear, Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 40%
Response Time : 13/12 (Typ.)(Tr/Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL Without Driver
Signal Interface : LVDS (1 ch, 6-bit) , 20 pins
Input Voltage : 3.3V (Typ.)

Panel Size : 10.4 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 123 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0685×0.2055 mm (H×V)
Pixel Pitch : 0.2055×0.2055 mm (H×V)
Weight : 440/480g (Typ./Max.)
Surface : Clear, Hard coating (3H)
Active Area : 210.432×157.824 mm (H×V)
Bezel Area : 215.4×161.8 mm (H×V)
Outline Dimension : 227×174.5 mm (H×V)
Outline Depth : 10.0±0.5 mm
Holes & Brackets : Side mounting holes (4 pcs)
Landscape or Portrait : Landscape type
Touch Panel : Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
PW090XUA E Ink 9.0" 640×220
PW090XU8 E Ink 9.0" 640×220
PW090XU7 E Ink 9.0" 640×220
PW090XU6 E Ink 9.0" 640×220
PW090XSA E Ink 9.0" 640×220
PW090XS8 E Ink 9.0" 640×220
PW084XU2 E Ink 8.4" 480×234
PW084XS6 E Ink 8.4" 480×234
PW084XS3 E Ink 8.4" 480×234
PW080XU8 E Ink 8.0" 480×220

What is our advantage?

Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.

Delivery Quantity: 50-100 cartons shipped by DHL every week

Supply Ability: 100 pcs Panels per day.

Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)

Warranty: 12 months.

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.

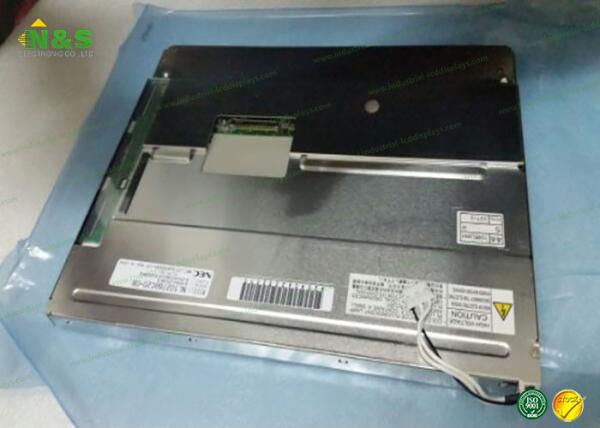

NL10276BC20-08 NEC LCD Panel Picture

NL10276BC20-08 NEC LCD Panel 10.4 inch with 210.432×157.824 mm Active Area
