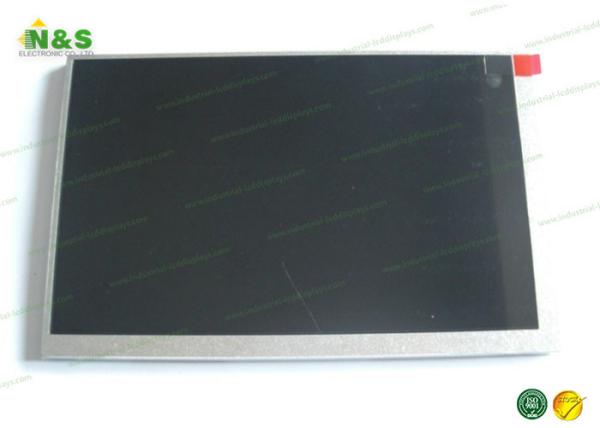

7.0 Inch LTP700WV-F02 Samsung small lcd display LCM Normally White CCFL TTL
7.0 Inch LTP700WV-F02 Samsung small lcd display LCM Normally White CCFL TTL
Specifications
Brand Name :
Samsung
Model Number :
LTP700WV-F02
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size : :
7.0 inch
Resolution : :
800×480(RGB) , WVGA
Active Area : :
152.4×91.44 mm
Outline : :
165×104×5.7 mm
Brightness : :
350 cd/m² (Typ.)
Contrast Ratio : :
300 : 1 (Typ.)
Display Colors : :
16.7M (8-bit) , CIE1931 58%
Viewing Angle : :
65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D)
Description

7.0 Inch LTP700WV-F02 Samsung small lcd display LCM Normally White CCFL TTL

Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

LTP700WV-F02 Information

Panel Size :7.0 inch
Dot Resolution :800×480(RGB) (WVGA)
Pixel Configuration :RGB Horizontal Stripe
Pixel Density :133 PPI
Aspect Ratio :15:9 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.1905×0.0635 mm (H×V)
Pixel Pitch :0.1905×0.1905 mm (H×V)
Weight :157.2g (Typ.)
Active Area :152.4×91.44 mm (H×V)
Bezel Area :155.4×94.44 mm (H×V)
Outline Dimension :165×104 mm (H×V)
Outline Depth :5.4±0.3 mm
Holes & Brackets :Without
Landscape or Portrait :Landscape type
Touch Panel :Without
Display Mode :TN, Normally White, TMR
Brightness :350 cd/m² (Typ.)
Contrast Ratio :300 : 1 (Typ.) (Transmissive)
Display Color :16.7M (8-bit)
Color Gamut :58% NTSC (CIE1931)
Response Time :30 (Typ.)(Tr+Td)
Viewing Angle :65/65/50/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :6 o'clock
White color Chromaticity :Wx:0.305; Wy:0.350
Sunlight Readable :Y
Vertical Frequency :60Hz
Reverse Scan :No


Quality Control:
1. Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.
2. Function Inspection
Make sure all functions are 100% tested ok
