LQ088K9LA02 Sharp 8.8 inch LCD Panel LCM 1280×480 240 360:1 262K WLED RSDS
LQ088K9LA02 Sharp 8.8 inch LCD Panel LCM 1280×480 240 360:1 262K WLED RSDS
Specifications
Brand Name :
Sharp
Model Number :
LQ088K9LA02
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
Sharp
Panel Model :
LQ088K9LA02
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
8.8 inch
Resolution :
1280(RGB)×480 , DVGA
Display Mode :
Normally Black, Transflective
Description

LQ088K9LA02 Sharp 8.8 inch LCD Panel LCM 1280×480 240 360:1 262K WLED RSDS

LQ088K9LA02 Detail

Panel Brand : SHARP
Panel Model : LQ088K9LA02
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 8.8 inch
Resolution : 1280(RGB)×480 , DVGA
Display Mode : Normally Black, Transflective
Active Area : 209.28×78.48 mm
Outline : 231.6×94.7 mm
Surface : Antiglare, Antireflection
Brightness : 240 cd/m² (Typ.)
Contrast Ratio : 360:1 (Typ.)(Transmissive) 5:1 (Typ.)(Reflective)
Display Colors : 262K (6-bit) , CIE1931 45%
Response Time : 5/5 (Typ.)(Tr/Td)
Viewing Angle :
Frequency : 60Hz
Lamp Type : 4 strings WLED Without Driver
Signal Interface : RSDS (1 Channel) , 70 pins

Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

We can do for you:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

FAQ

Q1: What's the quality of your Hard Disk?

A: Various brands for hard disk etc. We are available to meet your different requirements.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q4: How long is the lead time?

A: The lead time is about 2-3 working days after receipt of payment.

Q5: Do you accept sample order?

A:Yes, sample order is welcome.

Q6: How can I get the quotation?

A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Panel Size : 8.8 inch
Dot Resolution : 1280(RGB)×480 (DVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 155 PPI
Aspect Ratio : 8:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0545×0.1635 mm (H×V)
Pixel Pitch : 0.1635×0.1635 mm (H×V)
Weight : 320g (Max.)
Surface : Antiglare, Antireflection
Active Area : 209.28×78.48 mm (H×V)
Bezel Area : 213.0×81.0 mm (H×V)
Outline Dimension : 231.6×94.7 mm (H×V)
Outline Depth : 11.25 mm
Landscape or Portrait : Landscape type
Touch Panel : Without

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LM121VB1T02 SHARP 12.1" 640×480
LM121VB1T01 SHARP 12.1" 640×480
LM32015T SHARP 5.7" 320×240
LM8V302D SHARP 7.7" 640×480
LM104VC1T51 R SHARP 10.4" 640×480
LM104VC1T51 SHARP 10.4" 640×480
LM7M632R SHARP 6.5" 640×240
LM64P30R SHARP 9.4" 640×480

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

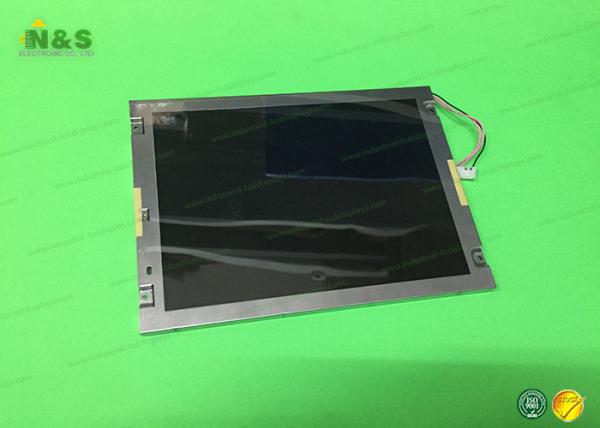

LQ088K9LA02 Picture
