DJ103IA-03B 10.3 inch Innolux LCD Panel Antiglare LCM 1920×720 750 1000:1 16.7M WLED LVDS
DJ103IA-03B 10.3 inch Innolux LCD Panel Antiglare LCM 1920×720 750 1000:1 16.7M WLED LVDS
Specifications
Brand Name :
Innolux
Model Number :
DJ103IA-03B
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
Innolux
Panel Model :
DJ103IA-03B
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
10.3 inch
Resolution :
1920(RGB)×720
Display Mode :
AAS, Normally Black, Transmissive
Description

DJ103IA-03B 10.3 inch Innolux LCD Panel Antiglare LCM 1920×720 750 1000:1 16.7M WLED LVDS

DJ103IA-03B Product Information

Panel Brand : INNOLUX
Panel Model : DJ103IA-03B
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.3 inch
Resolution : 1920(RGB)×720
Display Mode : AAS, Normally Black, Transmissive
Active Area : 243.648×91.368 mm
Outline : 259.84×109.3×16 mm
Surface : Antiglare
Brightness : 750 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (8-bit)
Response Time : 14/11 (Typ.)(Tr/Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 50 pins
Input Voltage : 3.3V (Typ.)

Panel Size : 10.3 inch
Dot Resolution : 1920(RGB)×720
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 200 PPI
Aspect Ratio : 8:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0423×0.1269 mm (H×V)
Pixel Pitch : 0.1269×0.1269 mm (H×V)
Weight : 380g (Max.)
Surface : Antiglare
Active Area : 243.648×91.368 mm (H×V)
Bezel Area : 246.05×93.77 mm (H×V)
Outline Dimension : 259.84×109.3 mm (H×V)
Outline Depth : 8.5/16 (Typ./Max.) mm
Holes & Brackets : Rear mounting Pole (6-M3)
Landscape or Portrait : Landscape type
Touch Panel : Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
V850DK1-QS1 Rev.C2 Innolux 85" 3840×2160
V650DJ4-QS5 Rev.M1 Innolux 65" 3840×2160
N080ICP-G01 CELL Innolux 8.0" 800×1280
DE080NA-01D Innolux 8.0" 800×480
AT080YN01 Innolux 8.0" 1024×600
PG055IA-03H Innolux 5.5" 720×1280
PP057IC-01A Innolux 5.7" 1080×1920
PG055IC-07F Innolux 5.5" 1080×1920
PB050IC-01D Innolux 5.0" 1080×1920
PG050IA-02A Innolux 5.0" 540×960

What is Our Advantage?

1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.

Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

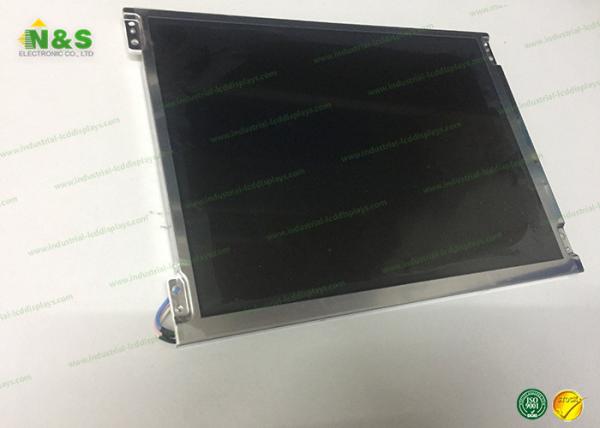

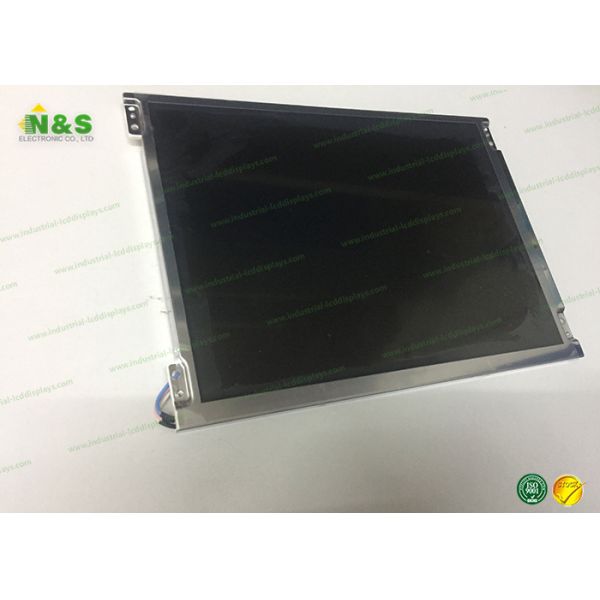

DJ103IA-03B Picture
