10.8 inch LQ108T1LY01 Sharp LCD Panel LCM 1366×800 250 800:1 16.7M WLED LVDS
10.8 inch LQ108T1LY01 Sharp LCD Panel LCM 1366×800 250 800:1 16.7M WLED LVDS
Specifications
Brand Name :
Sharp
Model Number :
LQ108T1LY01
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
Sharp
Panel Model :
LQ108T1LY01
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
10.8 inch
Resolution :
1366(RGB)×800 , WXGA
Display Mode :
ASV, Normally Black, Transmissive
Description

LQ108T1LY01 Sharp LCD Panel LCM 1366×800 250 800:1 16.7M WLED LVDS

LQ108T1LY01 Detail

Panel Brand : SHARP
Panel Model : LQ108T1LY01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.8 inch
Resolution : 1366(RGB)×800 , WXGA
Display Mode : ASV, Normally Black, Transmissive
Active Area : 237.7×139.2 mm
Outline : 253.8×158.8×5.45 mm
Surface : Glare (Haze 0%), Hard coating (2H), Antireflection
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 800:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 48%
Response Time : 30 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 7S4P WLED Without Driver
Signal Interface : LVDS (1 ch, 8-bit) , 40 pins
Input Voltage : 3.3V (Typ.)

The reasons you choose us

1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LM320195 SHARP 5.7" 320×240
LM320194 SHARP 5.7" 320×240
LM24013W SHARP 4.6" 240×64
LM065HB1T01 SHARP 6.5" 640×240
LM32019P5R SHARP 5.7" 320×240
LM32004 SHARP 5.7" 320×240
LM80C209 SHARP 11.3" 800×600

Panel Size : 10.8 inch
Dot Resolution : 1366(RGB)×800 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 145 PPI
Aspect Ratio : 17:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.058×0.174 mm (H×V)
Pixel Pitch : 0.174×0.174 mm (H×V)
Weight : 200/215g (Typ./Max.)
Surface : Glare (Haze 0%), Hard coating (2H), Antireflection
Active Area : 237.7×139.2 mm (H×V)
Outline Dimension : 253.8×158.8 mm (H×V)
Outline Depth : 5.45 (Max.) mm
Holes & Brackets : Face mounting holes (4-Φ2) on left, right slugs
Landscape or Portrait : Landscape type
Touch Panel : Without

Quality Control:

  1. Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

  1. Function Inspection

Make sure all functions are 100% tested ok

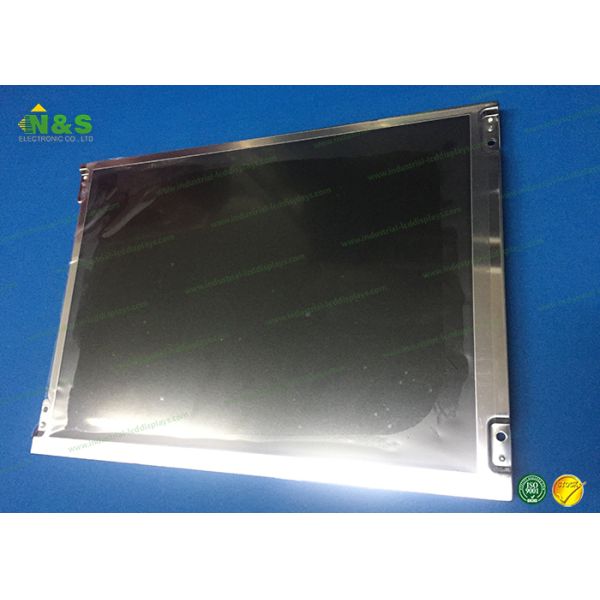

LQ108T1LY01 Picture

10.8 inch LQ108T1LY01 Sharp LCD Panel LCM 1366×800 250 800:1 16.7M WLED LVDS
