TM035WBHG01 Tianma LCD Displays 3.5 inch , flat lcd panel 53.28×71.04 mm
TM035WBHG01 Tianma LCD Displays 3.5 inch , flat lcd panel 53.28×71.04 mm
Specifications
Brand Name :
TIANMA
Model Number :
TM035WBHG01
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
3.5 inch
Resolution :
480(RGB)×640 , VGA
Display Mode :
TN, Normally White, Transmissive
Contrast Ratio :
500:1 (Typ.)
Frequency :
60Hz
Signal Interface :
Parallel RGB (1 ch, 6-bit) , 60 pins
Description

TM035WBHG01 TIANMA 3.5 inch Normally White with 53.28×71.04 mm

Products Information:
Panel Size :3.5 inch
Dot Resolution :480(RGB)×640 (VGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :228 PPI
Aspect Ratio :3:4 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.037×0.111 mm (H×V)
Pixel Pitch :0.111×0.111 mm (H×V)
Surface :Antiglare
Active Area :53.28×71.04 mm (H×V)
Outline Dimension :64×85 mm (H×V)
Outline Depth :4.33±0.3 mm
Landscape or Portrait :Portrait type
Touch Panel :Embeded (4-wire Resistive)


FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.

Display Mode :TN, Normally White, Transmissive
Brightness :250 cd/m² (Typ.)
Contrast Ratio :500 : 1 (Typ.) (Transmissive)
Display Color :262K (6-bit)
Color Gamut :50% NTSC (CIE1931)
Response Time :25 (Typ.)(Tr+Td)
Viewing Angle :60/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :9 o'clock
White color Chromaticity :Wx:0.301; Wy:0.321
White Variation :1.33/1.43 (Typ./Max.)(9 points)
Sunlight Readable :N


After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare

Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
TM240160XCFWGRATianma2.2"240×160
TM128128F6CCWGWC1Tianma1.44"128×128
TM12864G3CCWGWA-1Tianma2.4"128×64
TM050XYSP02Tianma5.0"540×960
TM050JYHN11-00Tianma5.0"720×1280
TM055JYSP08Tianma5.5"720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

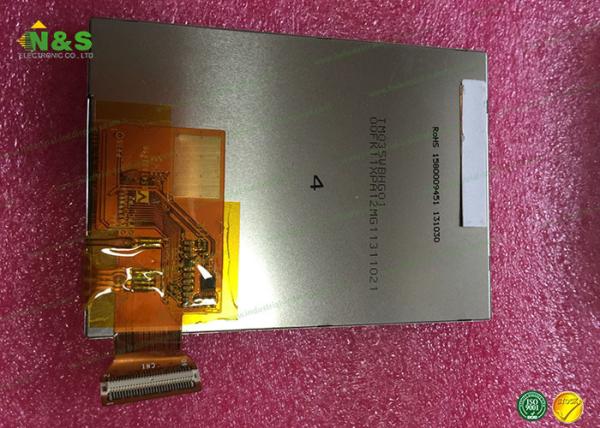

TM035WBHG01 Picture
