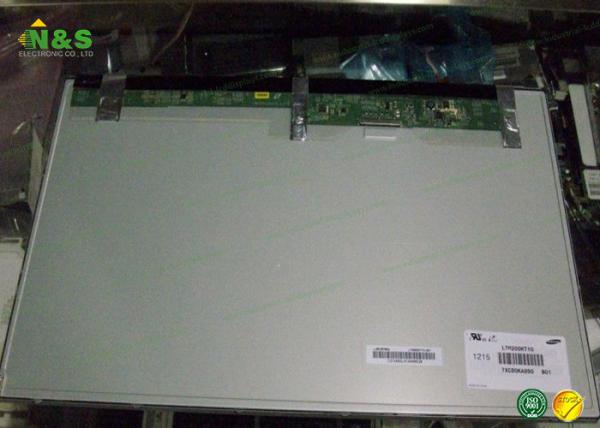

Active Area LTM200KT10 Samsung LCD Panel 20.0 inch LCM with 442.8×249.075 mm
Active Area LTM200KT10 Samsung LCD Panel 20.0 inch LCM with 442.8×249.075 mm
Specifications
Brand Name :
Samsung
Model Number :
LTM200KT10
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
20.0 inch
Resolution :
1600(RGB)×900 , HD+
Display Mode :
TN, Normally White, Transmissive
Active Area :
442.8×249.075 mm
Outline :
462.8×272×10.3 mm
Description

Active Area LTM200KT10 Samsung LCD Panel Samsung 20.0 inch LCM with 442.8×249.075 mm

LTM200KT10 Information

Panel Size : 20.0 inch
Dot Resolution : 1600(RGB)×900 (HD+)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 91 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.09225×0.27675 mm (H×V)
Pixel Pitch : 0.27675×0.27675 mm (H×V)
Weight : 1.70Kgs (Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 442.8×249.075 mm (H×V)
Bezel Area : 446.8×253.2 mm (H×V)
Outline Dimension : 462.8×272 mm (H×V)
Outline Depth : 10.3 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 5 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 points)
Sunlight Readable : N

Our Promise for our LCD Panels:

You will get reply within 24 Hours and:

ΠYear warranty

ΠDay shipping

‹ Return

Warranty:

1. All panels’ grade is promised strictly same as original factory’s standard.

2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

4. ISO 9001 guarantee.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AMS465GS47 Samsung 4.7" 720×1280
AMS477GV11 Samsung 4.8" 720×1280
AMS499QP59 Samsung 5.0" 1080×1920
AMS499QP53 Samsung 5.0" 1080×1920
AMS499QP07 Samsung 5.0" 1080×1920

Pls contact to us for more stock information: salespm@nselectronic.com.hk
