8.0 Inch FG080000DNCWA-T1 anti glare lcd screen Data Image 183×141×16.7 mm
8.0 Inch FG080000DNCWA-T1 anti glare lcd screen Data Image 183×141×16.7 mm
Specifications
Brand Name :
Data Image
Model Number :
FG080000DNCWA-T1
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
8.0 inch
Resolution :
640(RGB)×480 , VGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
162.24×121.68 mm
Outline :
183×141×16.7 mm
Description

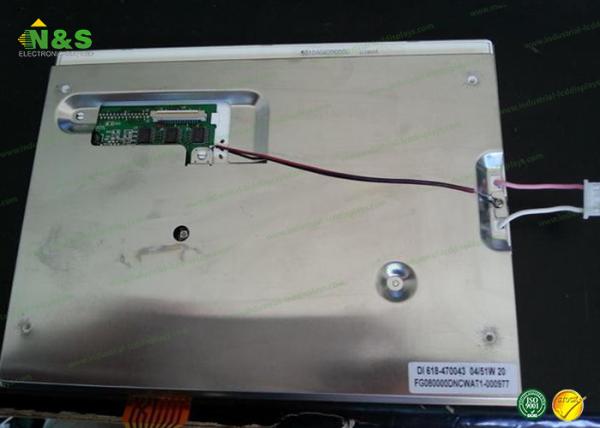

8.0 inch FG080000DNCWA-T1 TFT LCD Module Data Image for Industrial Application panel

FG080000DNCWA-T1 Specification

Panel Size: 8.0 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 100 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0845×0.2535 mm (H×V)
Pixel Pitch : 0.2535×0.2535 mm (H×V)
Weight : 505g (Typ.)
Surface : Antiglare, Hard coating
Active Area : 162.24×121.68 mm (H×V)
Outline Dimension : 183×141 mm (H×V)
Outline Depth : 16.2±0.5 mm
Holes & Brackets : Rear mounting holes (4-Φ2.2)
Landscape or Portrait : Landscape type
Touch Panel : Embeded (8-wire Resistive)

FG080000DNCWA-T1 Specification

Display Mode: TN, Normally White, Transmissive
Brightness : 320 cd/m² (Typ.)
Contrast Ratio : 250 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 15/35 (Typ.)(Tr/Td)
Viewing Angle : 65/65/65/65 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.293; Wy:0.345
White Variation : 1.25/1.43 (Typ./Max.)(9 points)
Sunlight Readable : N
