LQ064V3DG01 350 sharp lcd replacement screen , 262K medical lcd display CCFL TTL
LQ064V3DG01 350 sharp lcd replacement screen , 262K medical lcd display CCFL TTL
Specifications
Brand Name :
Sharp
Model Number :
LQ064V3DG01
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
Sharp
Panel Model :
LQ064V3DG01
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
6.4 inch
Resolution :
640(RGB)×480 , VGA
Display Mode :
TN, Normally White, Transmissive
Description

6.4 inch LQ064V3DG01 Sharp LCD Panel Normally White LCM 640×480 350 350:1 262K CCFL TTL

LQ064V3DG01 Specification

Panel Brand : SHARP
Panel Model : LQ064V3DG01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 6.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 130.56×97.92 mm
Outline : 161.3×117 mm
Surface : Antiglare
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 350:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 8/21 (Typ.)(Tr/Td)
Viewing Angle : 70/70/40/70 (Typ.)(CR≥5) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL Without Driver
Signal Interface : Parallel RGB (1 ch, 6-bit) , 31 pins
Input Voltage : 3.3/5.0V (Typ.)(VCC)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800
LQ133T1JW14B SHARP 13.3" 2560×1440
LQ047K3SX04 SHARP 4.7" 720×1280
LS024Q8UC92 SHARP 2.4" 240×320

Panel Size : 6.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 124 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.068×0.204 mm (H×V)
Pixel Pitch : 0.204×0.204 mm (H×V)
Weight : 280g (Max.)
Surface : Antiglare
Active Area : 130.56×97.92 mm (H×V)
Outline Dimension : 161.3×117 mm (H×V)
Outline Depth : 12.0 (Typ.) mm
Holes & Brackets : Face mounting holes (4-Ф3.2) on bracket
Landscape or Portrait : Landscape type
Touch Panel : Without

We can do for You:

  1. Quality Guarantee:

100% original new Hard Disk for you.

2．Fast reply:

Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

3．Delivery Guarantee:

Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.

4．After-Sale Service:

Professional support team to provide effective service, we are young and full of passion!

5. Professional acknowledgement of hard disks to provide customers with effective advice.

We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.

6. Competitive quotation:

Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

Packaging & Shipping:

Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

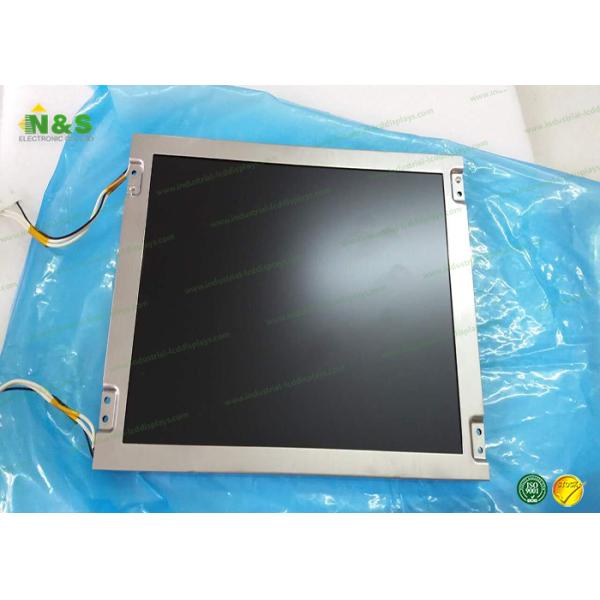

LQ064V3DG01 Picture

LQ064V3DG01 350 sharp lcd replacement screen , 262K medical lcd display CCFL TTL
