15.6 Inch LP156WH4-TLN2 lg lcd display 1366×768 Hard coating 3H
15.6 Inch LP156WH4-TLN2 lg lcd display 1366×768 Hard coating 3H
Specifications
Brand Name :
LG
Model Number :
LP156WH4-TLN2
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
LG
Panel Model :
LP156WH4-TLN2
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
15.6inch
Resolution :
640×480 , VGA
Display Mode :
TN, Normally White, Transmissive
Description

15.6 inch Normally White LP156WH4-TLN2 LG LCD Panel LCM 1366×768 220 400:1 262K WLED LVDS

LP156WH4-TLN2 Detail

Panel Brand : LG Display
Panel Model : LP156WH4-TLN2 61 Compatible model
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 15.6 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 344.232×193.536 mm
Outline : 359.3×209.5×5.5 mm
Shape Style : Wedge (PCBA Bent, Depth ≥5.2mm)
Surface : Glare (Haze 0%), Hard coating (3H)
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 400:1 (Min.)
Display Colors : 262K (6-bit) , CIE1931 60%
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 strings WLED Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)

FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

We Can Do for You:

1) One-to-one service with efficient & professional support;

2) Protection of your design and all your private information;

3) We could supply different hard disk for you.

4) Quality stability, can to provide certification of products;

5) Convenient payment methods: PayPal, T/T and Western Union;

6) Speedy shipment: we could arrange the shipment within 1-3 business days.

7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

Panel Size : 15.6 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 100 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.084×0.252 mm (H×V)
Pixel Pitch : 0.252×0.252 mm (H×V)
Weight : 420g (Max.)
Surface : Glare (Haze 0%), Hard coating (3H)
Active Area : 344.232×193.536 mm (H×V)
Bezel Area : 350.0×197.1 mm (H×V)
Outline Dimension : 359.3×209.5 mm (H×V)
Outline Depth : 5.5 (Max.) mm
Shape Style : Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets : Side mounting holes (8-M2) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LH530WX1-SH02 LG Display 5.3" 720×1280
LH500WX2-SH01 LG Display 5.0" 720×1280
LH176J03-SH02 LG Display 1.8" 220×176
LH176J04-TH01 LG Display 1.8" 176×220
LM230WF5-TJC3 LG Display 23.0" 1920×1080
LD470DUJ-SFE1 LG Display 47" 1920×1080

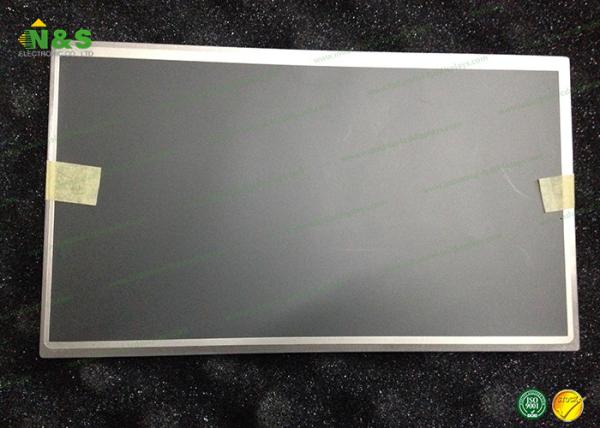

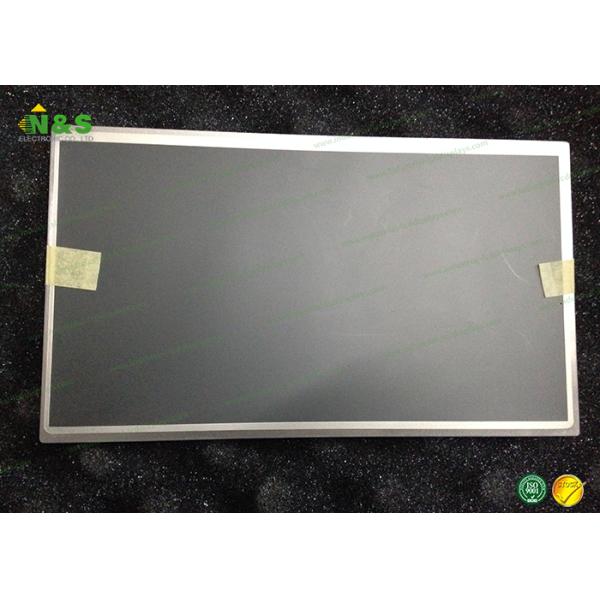

LP156WH4-TLN2 Picture
