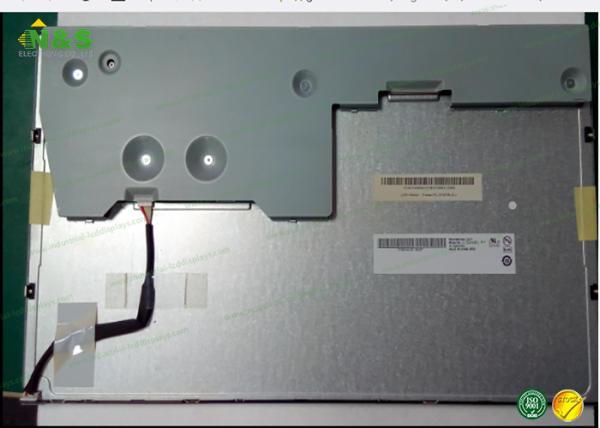

G156XW01 V1 AUO LCD Panel , 15.6 inch color lcd module 1366×768 400
G156XW01 V1 AUO LCD Panel , 15.6 inch color lcd module 1366×768 400
Specifications
Brand Name :
AU Optronics
Model Number :
G156XW01 V1
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
15.6 inch
Resolution :
1366(RGB)×768 , WXGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
344.232×193.536 mm
Outline :
363.8×215.9×17.35 mm
Description

G156XW01 V1 AUO LCD Panel , 15.6 inch color lcd module 1366×768 400

G156XW01 V1 Information

Panel Size : 15.6 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 100 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.084×0.252 mm (H×V)
Pixel Pitch : 0.252×0.252 mm (H×V)
Weight : 1.25/1.35Kgs (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 344.232×193.536 mm (H×V)
Bezel Area : 347.54×196.83 mm (H×V)
Outline Dimension : 363.8×215.9 mm (H×V)
Outline Depth : 16.85±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Display Module: TN, Normally White, Transmissive
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Color Gamut : 70% NTSC (CIE1931)
Response Time : 6/2 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)
Sunlight Readable : N

FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

We can do for You:

1.Quality Guarantee:

100% original new Hard Disk for you.

2．Fast reply:

Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

3．Delivery Guarantee:

Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.

4．After-Sale Service:

Professional support team to provide effective service, we are young and full of passion!

5. Professional acknowledgement of hard disks to provide customers with effective advice.

We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.

6. Competitive quotation:

Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
T500QVN03.3 CELL AUO 50" 3840×2160
T500QVN03.0 CELL AUO 50" 3840×2160
H497DAN02.1 AUO 5.0" 1080×1920
H546DAN07.3 AUO 5.5" 1080×1920
M270HVN02.3 CELL AUO 27.0" 1920×1080
M270HVN02.2 CELL AUO 27.0" 1920×1080

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
