AUO G190EAN01.2 19 inch medical monitor screen with 1280*1024 Resolution
AUO G190EAN01.2 19 inch medical monitor screen with 1280*1024 Resolution
AUO G190EAN01.2 19 inch medical monitor screen with 1280*1024 Resolution
AUO G190EAN01.2 19 inch medical monitor screen with 1280*1024 Resolution
AUO G190EAN01.2 19 inch medical monitor screen with 1280*1024 Resolution
AUO G190EAN01.2 19 inch medical monitor screen with 1280*1024 Resolution
AUO G190EAN01.2 19 inch medical monitor screen with 1280*1024 Resolution
AUO G190EAN01.2 19 inch medical monitor screen with 1280*1024 Resolution
Specifications
Brand Name :
AUO LCD Panel
Model Number :
G190EAN01.2
Certification :
ISO9001
Place of Origin :
Japan,Korea,Taiwan
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box
Display scale :
5:4
Pixel Arrangement :
LCR Vertical Stripe
Weight :
1.55Kgs (Typ.)
Outline Depth :
17.5 (Max.) mm
Operation Temperature :
0 °C ~ 50 °C
Display Area :
380.32×305.06
Backlight :
WLED
Luminance :
1000 nits
Description

AUO G190EAN01.2 19 inch medical monitor screen with 1280*1024 Resolution

G190EAN01.2 Mechanical Features

Panel Size : 19.0 inch
Dot Resolution : 1280(LCR)×1024 (SXGA)
Pixel Configuration : LCR Vertical Stripe
Pixel Density : 86 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.098×0.294 mm (H×V)
Pixel Pitch : 0.294×0.294 mm (H×V)
Weight : 1.55Kgs (Typ.)
Surface : Antiglare
Active Area : 376.32×301.056 mm (H×V)
Bezel Area : 380.32×305.06 mm (H×V)
Outline Dimension : 396×324 mm (H×V)
Outline Depth : 17.5 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

G190EAN01. 2 Photoelectric Parameters

Display mode AHVA, Normally Black, Transmissive
Luminance 1000 nits
Contrast Ratio 1000:1
Color Grayscale (8-bit)
Response 13/12 (Tr/Td) ms
Viewing Angle 89/89/89/89(U/D/L/R)
The Best View Symmetry
White Field Chroma X:0.265; Y:0.305
White Field Dynamic 1.25 (9 points)
Scanning Frequency 60Hz
Reverse Scan No
The kind of Singnal LVDS
Interface LVDS
Singnal Interface Definition LVDS-30P2C8B-190A
Drive-screen voltage 5.0V
Input Current 0.7A
Kind of Singnal Interface Terminal
Brand of Singnal Interface STM
Model of Singnal Interface FI-XB30SSL-HF15
Pitch of Singnal Interface 1.25 mm
Pin of Singnal Interface 9 pins

Main Products:

  1. AUO LCD Panel
  2. Innolux LCD Panel
  3. Tianma LCD Displays
  4. Samsung LCD Panel
  5. Chimei LCD Screen
  6. Innolux LCD Display
  7. Hitachi LCD Panel
  8. NEC LCD Screen Replacement
  9. Sharp LCD Screen
  10. TFT LCD Module
  11. Industrial LCD Displays

Warranty:

1. All panels’ grade is promised strictly same as original factory’s standard.

2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

4. ISO 9001 guarantee.

Products G190EAN01. 2 Photo:

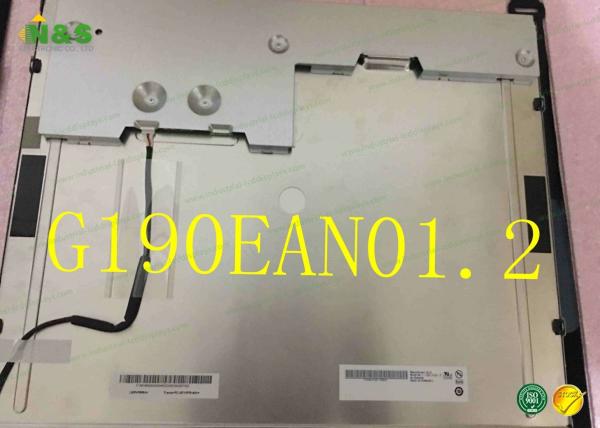

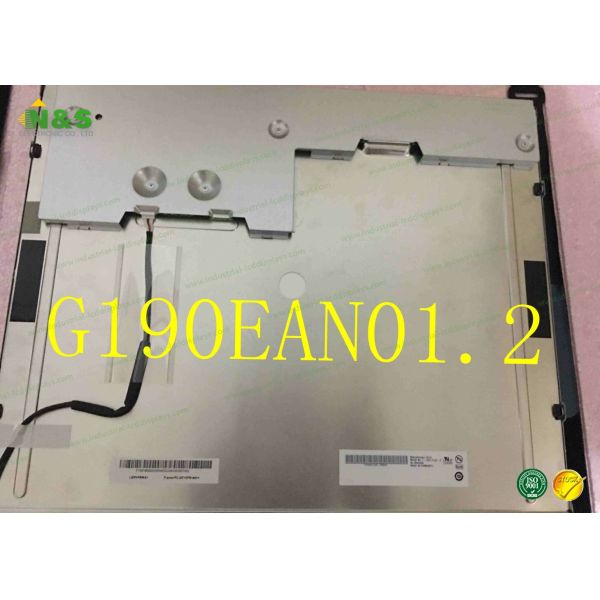

Backside Photo

AUO G190EAN01.2 19 inch medical monitor screen with 1280*1024 Resolution

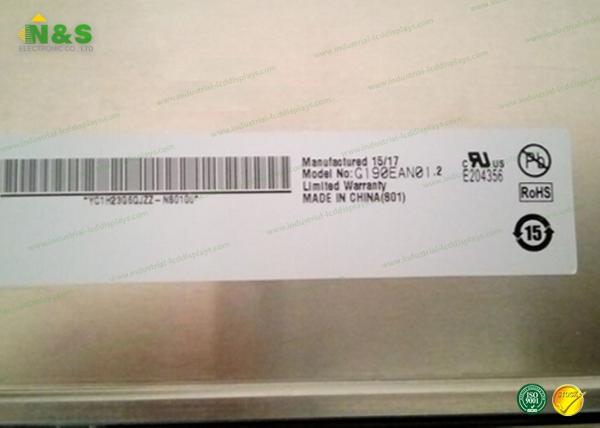

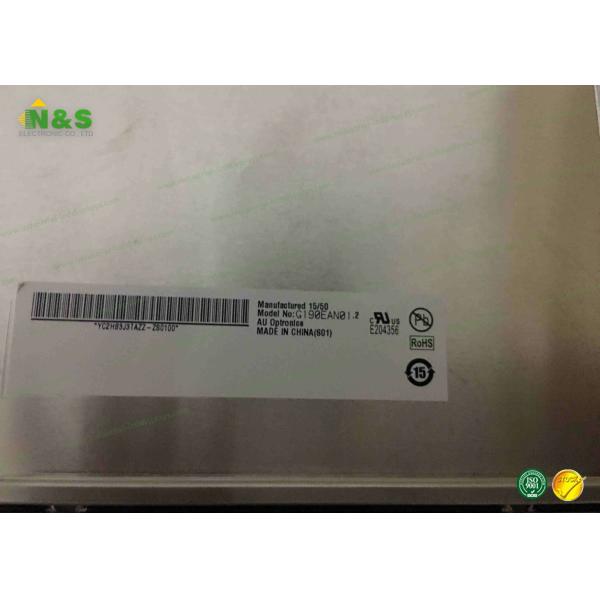

Tabs Photo

AUO G190EAN01.2 19 inch medical monitor screen with 1280*1024 Resolution

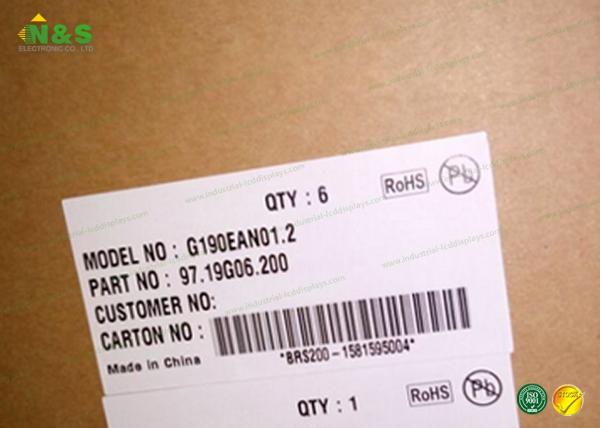

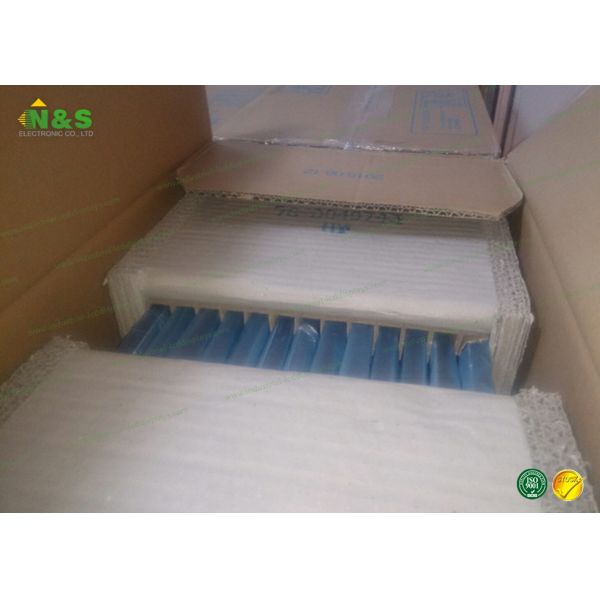

Packaging Photo

AUO G190EAN01.2 19 inch medical monitor screen with 1280*1024 Resolution
