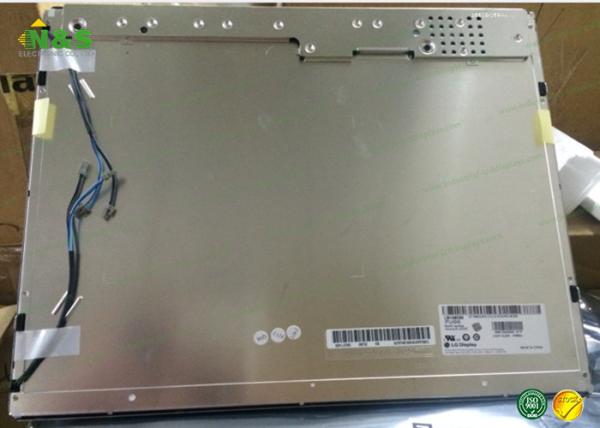

LM220WE1- TLP1 22.0 inch LCM computer lcd display TN , Normally White , Transmissive
LM220WE1- TLP1 22.0 inch LCM computer lcd display TN , Normally White , Transmissive
Specifications
Brand Name :
LG Display
Model Number :
LM220WE1-TLP1
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
1PCS/DAY
Delivery Time :
4weeks
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
22.0 inch
Resolution :
1680(RGB)×1050 , WSXGA+
Display Mode :
TN, Normally White, Transmissive
Active Area :
473.76×296.1 mm
Outline :
493.7×320.1 mm
Description

Normally White LM220WE1-TLP1 LG LCD Panel LG Display 22.0 inch LCM

Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.

LM220WE1-TLP1 Information

Panel Size : 22.0 inch
Dot Resolution : 1680(RGB)×1050 (WSXGA+)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 90 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.094×0.282 mm (H×V)
Pixel Pitch : 0.282×0.282 mm (H×V)
Weight : 2.35Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 473.76×296.1 mm (H×V)
Bezel Area : 477.7×300.1 mm (H×V)
Outline Dimension : 493.7×320.1 mm (H×V)
Outline Depth : 14.5 (Tpy.) mm
Holes & Brackets : Side mounting holes (4-M3)
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle : 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 points)
Sunlight Readable : N


Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LH300Q01-ED01 LG Display 3.0" 320×240
LH240Q02-ED01 LG Display 2.4" 240×320
LB060S01-FD01 LG Display 6.0" 800×600
LM230WF5-TJC3 LG Display 23.0" 1920×1080
LD470DUJ-SFE1 LG Display 47" 1920×1080
LH350H04-SH01 LG Display 3.5" 320×480
