LB104S02-TD01 LG LCD Panel 10.4 inch with 211.2×158.4 mm Active Area
LB104S02-TD01 LG LCD Panel 10.4 inch with 211.2×158.4 mm Active Area
LB104S02-TD01 LG LCD Panel 10.4 inch with 211.2×158.4 mm Active Area
LB104S02-TD01 LG LCD Panel 10.4 inch with 211.2×158.4 mm Active Area
LB104S02-TD01 LG LCD Panel 10.4 inch with 211.2×158.4 mm Active Area
LB104S02-TD01 LG LCD Panel 10.4 inch with 211.2×158.4 mm Active Area
LB104S02-TD01 LG LCD Panel 10.4 inch with 211.2×158.4 mm Active Area
LB104S02-TD01 LG LCD Panel 10.4 inch with 211.2×158.4 mm Active Area
LB104S02-TD01 LG LCD Panel 10.4 inch with 211.2×158.4 mm Active Area
LB104S02-TD01 LG LCD Panel 10.4 inch with 211.2×158.4 mm Active Area
Specifications
Brand Name :
LG
Model Number :
LB104S02-TD01
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
LG Display
Panel Model :
LB104S02-TD01
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
10.4 inch
Resolution :
800(RGB)×600 , SVGA
Display Mode :
TN, Normally White, Transmissive
Description

LB104S02-TD01 LG LCD Panel 10.4 inch with 211.2×158.4 mm Active Area

LB104S02-TD01 Detail

Panel Brand : LG Display
Panel Model : LB104S02-TD01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 234.7×178.6 mm
Surface : Antiglare
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 400:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 6/19 (Typ.)(Tr/Td)
Viewing Angle : 65/65/55/50 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : Parallel RGB (1 ch, 6-bit) , 60 pins
Input Voltage :
3.3/9.32/17.55/-4.99V (Typ.)(VCC/AVDD/VGH/VGL)

FAQ

Q1: What's the quality of your Hard Disk?

A: Various brands for hard disk etc. We are available to meet your different requirements.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q4: How long is the lead time?

A: The lead time is about 2-3 working days after receipt of payment.

Q5: Do you accept sample order?

A:Yes, sample order is welcome.

Q6: How can I get the quotation?

A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Panel Size : 10.4 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 420/450g (Typ./Max.)
Surface : Antiglare
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 214.5×161.0 mm (H×V)
Outline Dimension : 234.7×178.6 mm (H×V)
Outline Depth : 6.8±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Without

What is our advantage?

Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.

Delivery Quantity: 50-100 cartons shipped by DHL every week

Supply Ability: 100 pcs Panels per day.

Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)

Warranty: 12 months.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LG 1.3 Circular P-OLED LG Display 1.3" 320×320
LH300WQ1-ED01 LG Display 3.0" 240×400
LB050S01-RD02 LG Display 5.0" 800×600
LB050S01-RD01 LG Display 5.0" 800×600
LC430DUY-SHA3 LG Display 43" 1920×1080
LD490EPY-SHP1 LG Display 49" 1920×1080
LD550DPY-SHP1 LG Display 55" 1920×1080
LC490EGY-SHM3 LG Display 49" 3840×2160
LH550WF3-SH01 LG Display 5.5" 1080×1920

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

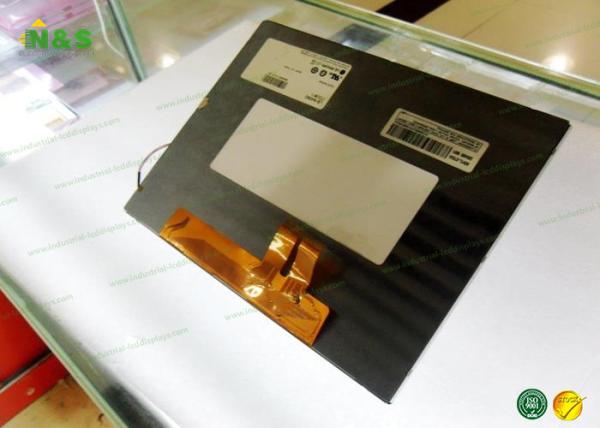

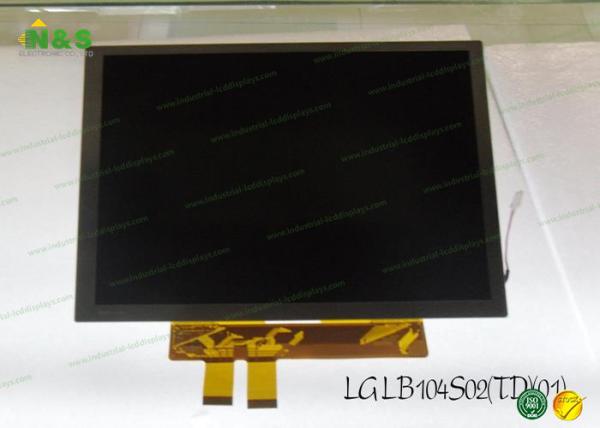

LB104S02-TD01 Picture
