NL6448AC33-27 10.4 inch tablet lcd screen replacement 640×480 4/3 Aspect Ratio
NL6448AC33-27 10.4 inch tablet lcd screen replacement 640×480 4/3 Aspect Ratio
Specifications
Brand Name :
NEC
Model Number :
NL6448AC33-27
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Resolution :
640(RGB)×480 , VGA
Active Area :
211.2×158.4 mm
Outline :
243×185.1×11.5 mm
Contrast Ratio :
300:1 (Typ.)
Display Colors :
262K (6-bit) , CIE1931 43%
Description

NL6448AC33-27 NEC LCD Panel 10.4 inch LCM 640×480 250 300:1 262K CCFL TTL

NL6448AC33-27 NEC Product Information

Panel Size : 10.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.110×0.330 mm (H×V)
Pixel Pitch : 0.330×0.330 mm (H×V)
Weight : 515g (Typ.)(With inverter)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 215.4×161.8 mm (H×V)
Outline Dimension : 243×185.1 mm (H×V)
Outline Depth : 11.0±0.5 mm
Holes & Brackets : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange

professional sales team to follow up your case.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
ED097TC1 E Ink 9.7" 1200×825
ET047TC1 E Ink 4.7" 540×960
ET040TC1 E Ink 4.0" 480×720
ED043WH1 E Ink 4.3" 480×800
ED043WC1 E Ink 4.3" 480×800
ED043WC3 E Ink 4.3" 480×800
ED060XD6 E Ink 6.0" 758×1024
SMA058HRG1 E Ink 5.8" 600×448
SMA058H7G1 E Ink 5.8" 600×448
ED035OC1 E Ink 3.5" 360×600

Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 300 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 43% NTSC (CIE1931)
Response Time : 15/60 (Typ.)(Tr/Td)
Viewing Angle : 50/50/50/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White Variation : 1.25/1.40 (Typ./Max.)(5 points)
Sunlight Readable : N

Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing
  4. Picked up by forward and delivered by express services.

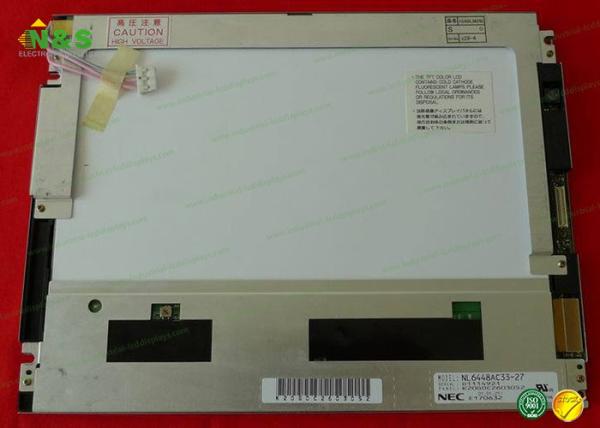

NL6448AC33-27 NEC Picture

NL6448AC33-27 10.4 inch tablet lcd screen replacement 640×480 4/3 Aspect Ratio
