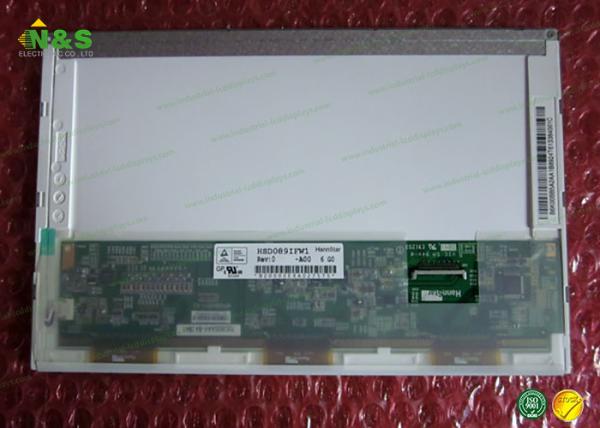

HSD089IFW1-A00 TFT LCD ModuleHannStar 8.9 inch LCM 640×234 for Netbook PC panel
HSD089IFW1-A00 TFT LCD ModuleHannStar 8.9 inch LCM 640×234 for Netbook PC panel
Specifications
Brand Name :
HannStar
Model Number :
HSD089IFW1-A00
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
9.0 inch
Resolution :
640(RGB)×234
Display Mode :
TN, Normally White, Transmissive
Active Area :
197.76×111.735 mm
Outline :
210.7×126.4×4.25 mm
Description

HSD089IFW1-A00 TFT LCD ModuleHannStar 8.9 inch LCM 640×234 for Netbook PC panel

HSD089IFW1-A00 Information

Panel Size : 8.9 inch
Dot Resolution : 1024(RGB)×600 (WSVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 133 PPI
Aspect Ratio : 17:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0635×0.1890 mm (H×V)
Pixel Pitch : 0.1905×0.1890 mm (H×V)
Weight : 200/215g (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 195.072×113.4 mm (H×V)
Bezel Area : 198.27×116.6 mm (H×V)
Outline Dimension : 213.36×129.55 mm (H×V)
Outline Depth : 5.15/5.45 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 5/20 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.43 (Max.)(9 points)
Sunlight Readable : N


Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
HSD043B8W2-C01 HannStar 4.3" 480×800
HSD070IDW3-A00-0299 HannStar 7.0" 800×480
HSD050F9W1-A00 HannStar 5.0" 480×272
HSD050FDW1-A00 HannStar 5.0" 800×480
HSD043F9W1-A00 HannStar 4.3" 480×272
HSD050B8W4-A00 HannStar 5.0" 480×854
HSD050B8W7-C00 HannStar 5.0" 480×854
HSD070FHW1-D00 HannStar 7.0" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
