Antiglare 8.0 inch LS800JT9001 Innolux TFT LCD Module LCM 162×121.5 mm
Antiglare 8.0 inch LS800JT9001 Innolux TFT LCD Module LCM 162×121.5 mm
Specifications
Brand Name :
JDI
Model Number :
LS800JT9001
Certification :
iso9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3WORK DAY
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
8.0 inch
Resolution :
800(RGB)×600 , SVGA
Display Mode :
TN, Normally White, Transmissive
Description

Antiglare 8.0 inch LS800JT9001 Innolux TFT LCD Module LCM 162×121.5 mm

Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.

LS800JT9001 Specification

Panel Size :8.0 inch
Dot Resolution :800(RGB)×600 (SVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :125 PPI
Aspect Ratio :4:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.0675×0.2025 mm (H×V)
Pixel Pitch :0.2025×0.2025 mm (H×V)
Weight :245g (Typ.)
Surface :Antiglare (Haze 25%)
Active Area :162×121.5 mm (H×V)
Bezel Area :164.6×124.1 mm (H×V)
Outline Dimension :183×141 mm (H×V)
Outline Depth :5.8 (Typ.) mm
Landscape or Portrait :Landscape type
Touch Panel :Without
Display Mode :
TN, Normally White, Transmissive
Brightness :250 cd/m² (Typ.)
Contrast Ratio :500 : 1 (Typ.) (Transmissive)
Display Color :262K (6-bit)
Response Time :15/35 (Typ.)(Tr/Td)
Viewing Angle :70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :6 o'clock
White color Chromaticity :Wx:0.310; Wy:0.330
Sunlight Readable :N


FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
GP055GAILS0020V01JDI5.5"720×1280
DPP050A224AJDI5.0"1080×1920
TPF0501008PJDI5.0"720×1280
TPF0702002NJDI7.0"1200×1920
LPM070W425DJDI7.0"1200×1920
GP040GAIIP0020V01JDI4.0"540×960

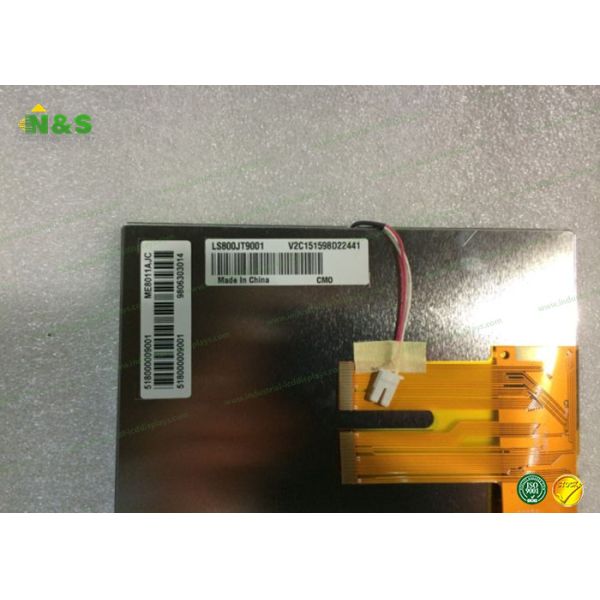

LS800JT9001 Picture

Antiglare 8.0 inch LS800JT9001 Innolux TFT LCD Module LCM 162×121.5 mm
