TM035KDH01 Tianma LCD Displays 3.5 inch Normally White for Digtal Still Camera panel
TM035KDH01 Tianma LCD Displays 3.5 inch Normally White for Digtal Still Camera panel
Specifications
Brand Name :
Tianma
Model Number :
TM035KDH01
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
3.5 inch
Resolution :
320(RGB)×240 , QVGA
Display Mode :
TN, Normally White, Transmissive
Signal Interface :
Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins
Description

TM035KDH01 Tianma LCD Displays 3.5 inch Normally White for Digtal Still Camera panel

Products Information:
Panel Size : 3.5 inch
Dot Resolution : 320(RGB)×240 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 115 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.073×0.219 mm (H×V)
Pixel Pitch : 0.219×0.219 mm (H×V)
Weight : 29g (Typ.)
Surface :
Clear, Hard coating (3H)
Active Area : 70.08×52.56 mm (H×V)
Bezel Area : 72.88×55.36 mm (H×V)
Outline Dimension : 76.9×63.9 mm (H×V)
Outline Depth : 2.8±0.2 mm
Landscape or Portrait : Landscape type
Touch Panel : Without

Display Mode :
TN, Normally White, Transmissive
Brightness : 420 cd/m² (Typ.)
Contrast Ratio : 350 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity :
Wx:0.310; Wy:0.330
White Variation : 1.25/1.33 (Typ./Max.)(9 points)
Sunlight Readable : N

Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
TM055JYHP01 Tianma 5.5" 720×1280
TM046XYHP01 Tianma 4.7" 540×960
TL050VGXP01 Tianma 5.0" 1080×1920
TM060JYSP02 Tianma 6.0" 720×1280
TM045YYSP04 Tianma 4.5" 480×854
TM045YYSP02 Tianma 4.5" 480×854
TM016XYHP01 Tianma 1.6" 256×320

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Our Service

1. Small quantity also can be provided.

2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise

5. Sourcing line for different hard disks for different brands.

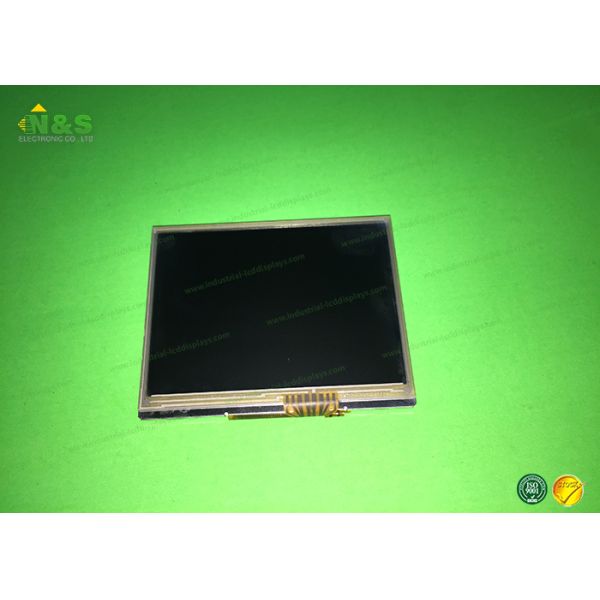

TM035KDH01 Picture

TM035KDH01 Tianma LCD Displays 3.5 inch Normally White for Digtal Still Camera panel
