3.2 Inch LMS320HF0X-001 industrial lcd panel , Flat Rectangle Display with 39.6×71.25 mm
3.2 Inch LMS320HF0X-001 industrial lcd panel , Flat Rectangle Display with 39.6×71.25 mm
Specifications
Brand Name :
Samsung
Model Number :
LMS320HF0X-001
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
MoneyGram, Western Union, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Active Area :
39.6×71.25 mm
Outline :
45.1×80.67×2.45 mm
Viewing Angle :
70/70/70/70 (Min.)(CR≥10) (L/R/U/D)
Panel Size : :
3.2 inch
Description

3.2 inch LMS320HF0X-001 Samsung LCD Panel Flat Rectangle Display with 39.6×71.25 mm

LMS320HF0X-001 Product Information:

3.2 Inch LMS320HF0X-001 industrial lcd panel , Flat Rectangle Display with 39.6×71.25 mm

Panel Size : 3.2 inch
Dot Resolution : 240(RGB)×432
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 153 PPI
Aspect Ratio : 9:16 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.055×0.165 mm (H×V)
Pixel Pitch : 0.165×0.165 mm (H×V)
Weight : TBD
Surface : Hard coating (2H) =
Active Area : 39.6×71.25 mm (H×V)
Outline Dimension : 45.1×80.67 mm (H×V)
Outline Depth : 2.3±0.15 mm
Landscape or Portrait : Portrait type
Touch Panel : Without

Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

Display Mode : mPVA, Normally Black, TMR
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 350 : 1 (Typ.) (Transmissive)
Display Color : 65K/262K ()
Color Gamut : 60% NTSC (CIE1931)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 70/70/70/70 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.319; Wy:0.360
White Variation : 1.43 (Max.)(5 points)
Sunlight Readable : Y

After-sale Services:

1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).

2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.

3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.

We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.

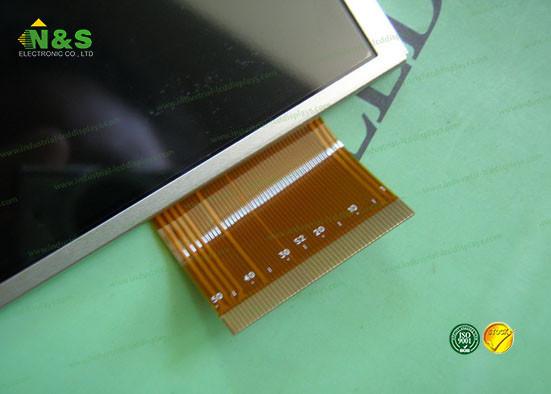

Picture of LMS320HF0X-001 Samsung LCD Panel

3.2 Inch LMS320HF0X-001 industrial lcd panel , Flat Rectangle Display with 39.6×71.25 mm
