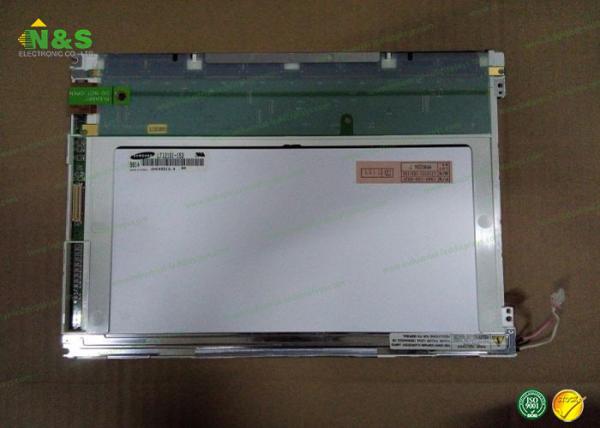

LT121S1-153 samsung lcd screen , Normally White Lcd Laptop Screen 800×600
LT121S1-153 samsung lcd screen , Normally White Lcd Laptop Screen 800×600
Specifications
Brand Name :
Samsung
Model Number :
LT121S1-153
Certification :
ISO9001
Place of Origin :
Korea
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand : :
SAMSUNG
Panel Model :
LT121S1-153
Panel Type : :
a-Si TFT-LCD , LCM
Panel Size : :
12.1 inch
Description

12.1 inch LT121S1-153 Samsung Normally White for Laptop panel 800×600

LT121S1-153 Information

Panel Size : 12.1 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 82 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.1025×0.3075 mm (H×V)
Pixel Pitch : 0.3075×0.3075 mm (H×V)
Weight : 500g (Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 246×184.5 mm (H×V)
Outline Dimension : 275×200 mm (H×V)
Outline Depth : 8.0 (Max.) mm
Holes & Brackets : Face mounting holes (4 pcs)
Landscape or Portrait : Landscape type
Touch Panel : Without

LT121S1-153 Information

Display Mode : TN, Normally White, Transmissive
Brightness : 70 cd/m² (Typ.)
Contrast Ratio : 120 : 1 (Min.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 20/30 (Typ.)(Tr/Td)
Viewing Angle : 45/45/10/30 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.303; Wy:0.317
White Variation : 2.00 (Max.)(13 points)
Sunlight Readable : N

LT121S1-153 Information

Lamp Position : Edge light type
Lamp Type : CCFL
Lamp Amount : 1 pcs
Lamp Shape : Straight
Lamp Life Time : 10K(Min.) (Hours)
Lamp Voltage : 548/593/624V (Min./Typ./Max.)
Lamp Current : 2.0/3.0/5.0mA (Min./Typ./Max.)
Lamp Operating Frequency : 20/50/60KHz (Min./Typ./Max.)
Lamp Startup Voltage : 900V (Max.)(Ta=0℃)
Lamps Power Consumption : 1.84/3.31W (Typ./Max.)
Interface Type : Connector
Backlight Interface Brand Model Pin Pitch Pins Amount Configuration
JST BHR-03VS-1 4.0 mm 3 pins 1 pcs BLL-3PINS-HNL
Lamp Driver Board : No

Our Advantages

  • We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • Welcome small, medium & big quantity orders.
  • 100% QC Inspection before Shipment.
  • After-sales-service With 12 Months Warranty for our LCD panels.

Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AMS497QH05

Samsung

 5.0" 720×1280
AMS465GS52 Samsung 4.7" 720×1280
AMS465GS51 Samsung 4.7" 720×1280
AMS465GS47 Samsung 4.7" 720×1280
AMS477GV11 Samsung 4.8" 720×1280
AMS499QP59 Samsung 5.0" 1080×1920
AMS499QP53 Samsung 5.0" 1080×1920
AMS499QP07 Samsung 5.0" 1080×1920

Pls contact to us for more stock information: salespm@nselectronic.com.hk
