18.5 Inch M185XW01 V0 Anti Glare Lcd Screen Panel with 409.8×230.4 mm Active Area
18.5 Inch M185XW01 V0 Anti Glare Lcd Screen Panel with 409.8×230.4 mm Active Area
18.5 Inch M185XW01 V0 Anti Glare Lcd Screen Panel with 409.8×230.4 mm Active Area
18.5 Inch M185XW01 V0 Anti Glare Lcd Screen Panel with 409.8×230.4 mm Active Area
Specifications
Brand Name :
AUO
Model Number :
M185XW01 V0
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Supply Ability :
500PCS/DAY
Display Colors :
16.7M (6-bit + Hi-FRC) , CIE1931 72%
Active Area :
409.8×230.4 mm
Outline :
430.37×254.6×16.5 mm
Viewing Angle :
85/85/75/85 (Typ.)(CR≥10) (L/R/U/D)
Description

18.5 Inch M185XW01 V0 Anti Glare Lcd Screen Panel with 409.8×230.4 mm Active Area

Competitive Advantage:

1. We are a leading vendor & distributor for the LCD panels for more than 6 years.

2. We got the ISO9001 quality management system certification.

3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.

4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.

5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.

6. 1-year warranty is offered.

7. All LCD Panel will be tested before shipment.

8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.

Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2.Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

M185XW01 V0 Specification

Panel Brand : AUO
Panel Model : M185XW01 V0
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 18.5 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 409.8×230.4 mm
Outline : 430.37×254.6×16.5 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
Response Time : 3.6/1.4 (Typ.)(Tr/Td)
Viewing Angle : 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL Without Driver
Signal Interface : LVDS (1 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
H598QAN01.0 AUO 6.0" 1440×2560
T430HVN01.2 CELL AUO 43" 1920×1080
H495TAN01.2 AUO 5.0" 720×1280
T650QVN04.5 CELL AUO 65" 3840×2160
M320DVN01.0 CELL AUO 32.0" 2560×1440
M238HVN01.0 CELL AUO 23.8" 1920×1080
M238HVN01.2 CELL AUO 23.8" 1920×1080
T320XVN02.F CELL AUO 31.5" 1366×768
T430HVN01.6 CELL AUO 43" 1920×1080
B101EAN01.2 CELL AUO 10.1" 1280×800
H497EAN01.0 AUO 5.0" 768×1280
T320XVN02.C CELL AUO 31.5" 1366×768
T320HVN05.8 CELL AUO 31.5" 1920×1080
T500HVN07.5 CELL AUO 50" 1920×1080

Panel Size : 18.5 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 84 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.100×0.300 mm (H×V)
Pixel Pitch : 0.300×0.300 mm (H×V)
Weight : 2.00Kgs (Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 409.8×230.4 mm (H×V)
Bezel Area : 413.4×234.0 mm (H×V)
Outline Dimension : 430.37×254.6 mm (H×V)
Outline Depth : 16.5 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

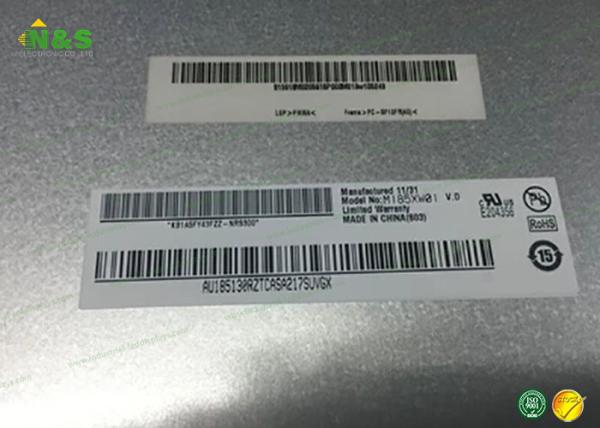

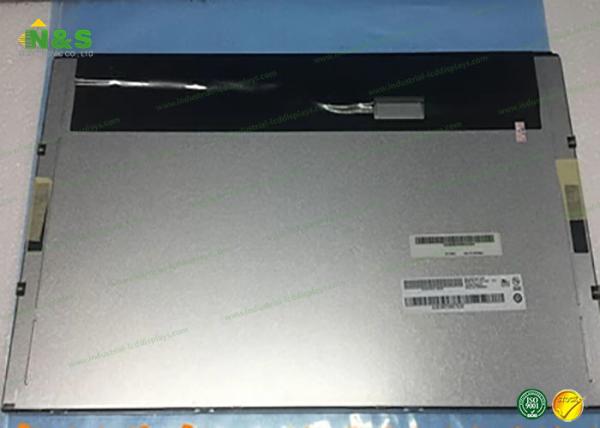

M185XW01 V0 AUO LCD Panel Picture
