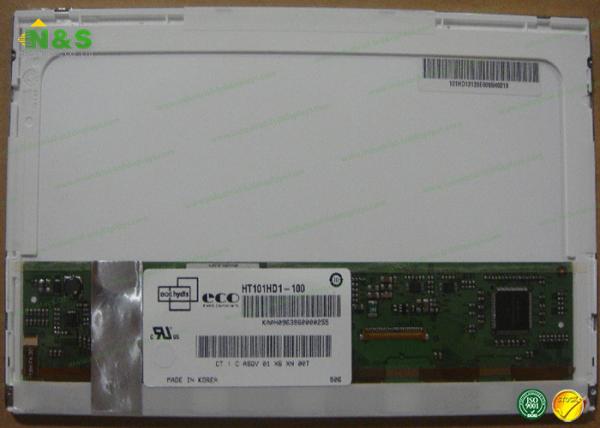

HT101HD1-100 HYDIS 10.1 inch laptop lcd panel , lcd screen for laptop
HT101HD1-100 HYDIS 10.1 inch laptop lcd panel , lcd screen for laptop
Specifications
Brand Name :
HYDIS
Model Number :
HT101HD1-100
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Contrast Ratio :
400:1 (Typ.)
Panel Size :
10.1 inch
Resolution :
1366(RGB)×768 , WXGA
Display Mode :
TN, Normally White, Transmissive
Frequency :
60Hz
Signal Interface :
LVDS (1 ch, 6-bit) , 40 pinspins
Description

HT101HD1-100 HYDIS 10.1 inch Normally White with 222.317×124.992 mm for Laptop

Products Information:
Panel Size : 10.1 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 156 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.05425×0.16275 mm (H×V)
Pixel Pitch : 0.16275×0.16275 mm (H×V)
Weight : 190g (Max.)
Active Area : 222.317×124.992 mm (H×V)
Bezel Area : 225.7×128.4 mm (H×V)
Outline Dimension : 235×143 mm (H×V)
Outline Depth : 4.9±0.3 mm
Shape Style : Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets : Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without


Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels &Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.
Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 30/30/10/20 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.59/1.41 (Typ./Max.)(13 points)
Sunlight Readable : N


FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
HVA40WV1-D02 HYDIS 4.0" 480×800
HV070WS1-P01 HYDIS 7.0" 1024×600
HV070WS1-P00 HYDIS 7.0" 1024×600
HVT35HV1-DE1 HYDIS 3.5" 320×480
HVA37WV1-D01 HYDIS 3.7" 480×800
HVA37WV1-DE1 HYDIS 3.7" 480×800
HX104X01-211 HYDIS 10.4" 1024×768
