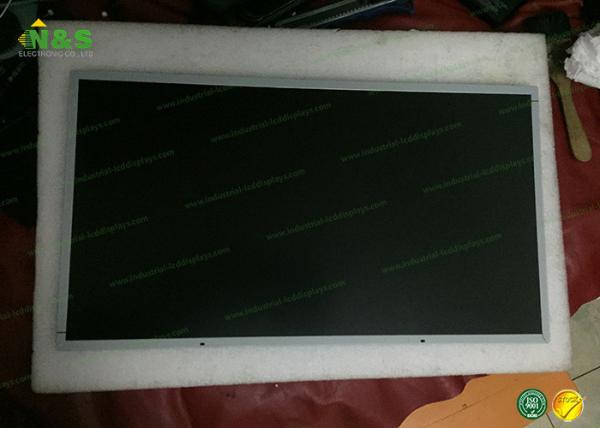

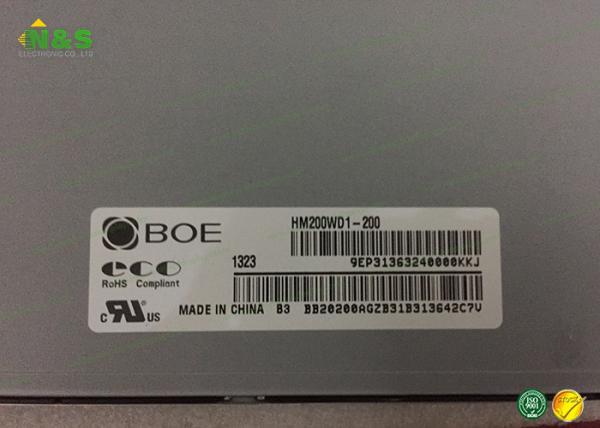

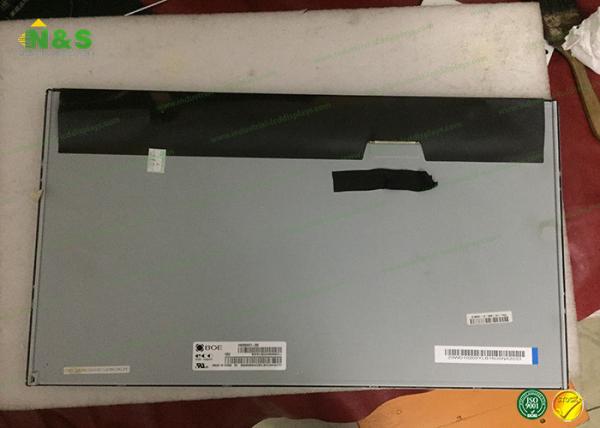

HM200WD1-200 20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model Antiglare (Haze 25%)
HM200WD1-200 20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model Antiglare (Haze 25%)
HM200WD1-200 20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model Antiglare (Haze 25%)
HM200WD1-200 20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model Antiglare (Haze 25%)
HM200WD1-200 20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model Antiglare (Haze 25%)
HM200WD1-200 20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model Antiglare (Haze 25%)
Specifications
Brand Name :
BOE
Model Number :
HM200WD1-200
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Contrast Ratio :
600:1 (Typ.)
Panel Size :
20.0 inch
Resolution :
1600(RGB)×900 , HD+
Surface :
Antiglare (Haze 25%), Hard coating (3H)
Frequency :
60Hz
Signal Interface :
LVDS (2 ch, 8-bit) , 30 pins
Description

HM200WD1-200 20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model Antiglare (Haze 25%)

Products Information:

Panel Size : 20.0 inch
Dot Resolution : 1600(RGB)×900 (HD+)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 91 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.09225×0.27675 mm (H×V)
Pixel Pitch : 0.27675×0.27675 mm (H×V)
Weight : 1.70Kgs (Typ.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 442.8×249.075 mm (H×V)
Bezel Area : 446.8×253.1 mm (H×V)
Outline Dimension : 462.8×272 mm (H×V)
Outline Depth : 10.2 (Typ.) mm
Holes & Brackets : Side mounting holes (4-M3)
Landscape or Portrait : Landscape type
Touch Panel : Without

FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.

The reasons you choose us

1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
MV236FHB-N10 BOE 24.0" 1920×1080
HR270QH3-100 BOE 27.0" 2560×1440
BF045WVQ-401 BOE 4.5" 480×854
BV055HDE-N40 BOE 5.5" 720×1280
TV080WXB-NV0 BOE 8.0" 800×1280
AV080WVB-NW2 BOE 8.0" 800×480

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

HM200WD1-200 Information

Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Response Time : 1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle : 45/45/25/40 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)
Sunlight Readable : N

HM200WD1-200 Information

Lamp Position : Edge light type (Right side)
Lamp Type : WLED
Lamp Amount : 13S4P
Lamp Shape : 4 strings
Lamp Life Time : 30K(Min.) (Hours)
Lamp Voltage : 37.7/41.6/46.8V (Typ./Max.)
Lamp Current : 57/60/63mA (Min./Typ./Max.)
Lamps Power Consumption : 9.05/9.98/11.23W (Min./Typ./Max.)
Interface Type : Connector
Interface Position : 　 　 　 　
　
Backlight Interface Brand Model Pin Pitch Pins Amount Configuration
　 E&T 3708K-Q06N-00L 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAACC
Lamp Driver Board : No
