10.1 inch HSD101PWW1-G10 HannStar LCD Panel with 216.96×135.6 mm
10.1 inch HSD101PWW1-G10 HannStar LCD Panel with 216.96×135.6 mm
10.1 inch HSD101PWW1-G10 HannStar LCD Panel with 216.96×135.6 mm
10.1 inch HSD101PWW1-G10 HannStar LCD Panel with 216.96×135.6 mm
10.1 inch HSD101PWW1-G10 HannStar LCD Panel with 216.96×135.6 mm
10.1 inch HSD101PWW1-G10 HannStar LCD Panel with 216.96×135.6 mm
10.1 inch HSD101PWW1-G10 HannStar LCD Panel with 216.96×135.6 mm
10.1 inch HSD101PWW1-G10 HannStar LCD Panel with 216.96×135.6 mm
Specifications
Brand Name :
HannStar
Model Number :
HSD101PWW1-G10
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
HannStar
Panel Model :
HSD101PWW1-G10
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
10.1 inch
Resolution :
1280(RGB)×800 , WXGA
Display Mode :
HS-IPS, Normally Black, Transmissive
Description

10.1 inch HSD101PWW1-G10 HannStar LCD Panel with 216.96×135.6 mm

Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.

HSD101PWW1-G10 Specification

Panel Brand : HannStar
Panel Model : HSD101PWW1-G10
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.1 inch
Resolution : 1280(RGB)×800 , WXGA
Display Mode : HS-IPS, Normally Black, Transmissive
Active Area : 216.96×135.6 mm
Outline : 227.42×147.69×4.25 mm
Surface : Hard coating
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 800:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 45%
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)

Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days

Panel Size : 10.1 inch
Dot Resolution : 1280(RGB)×800 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 149 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0565×0.1695 mm (H×V)
Pixel Pitch : 0.1695×0.1695 mm (H×V)
Weight : 135g (Max.)
Surface : Hard coating
Active Area : 216.96×135.6 mm (H×V)
Outline Dimension : 227.42×147.69 mm (H×V)
Outline Depth : 2.15/4.25 (Typ./Max.) mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LK315T3HC1K SHARP 31.5" 1366×768
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

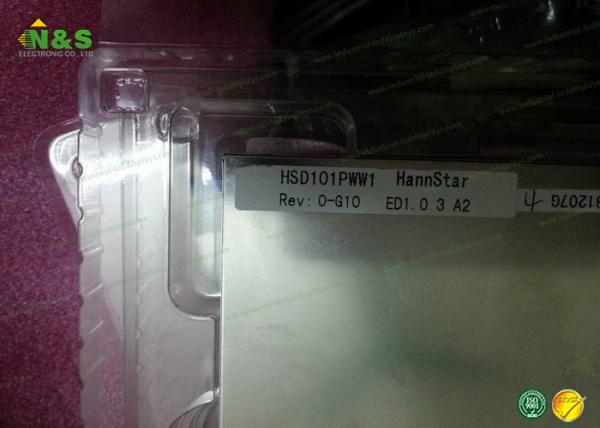

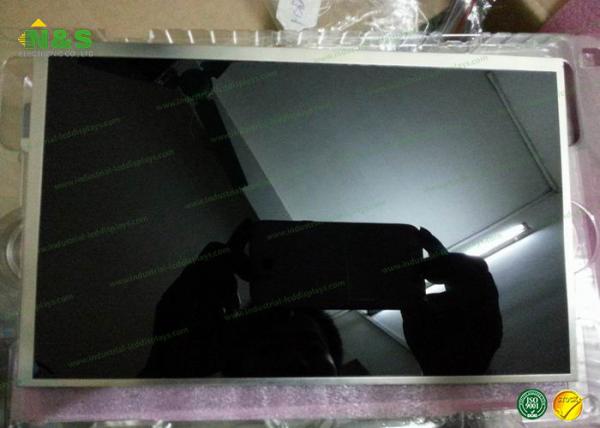

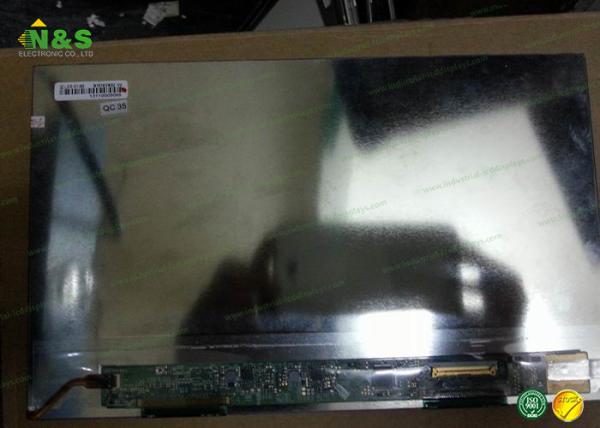

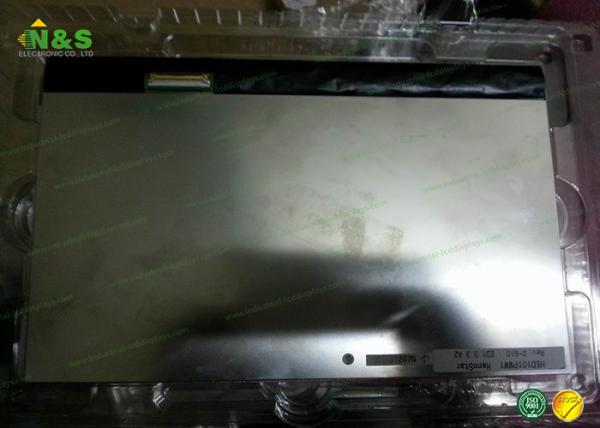

HSD101PWW1-G10 Picture

10.1 inch HSD101PWW1-G10 HannStar LCD Panel with 216.96×135.6 mm
