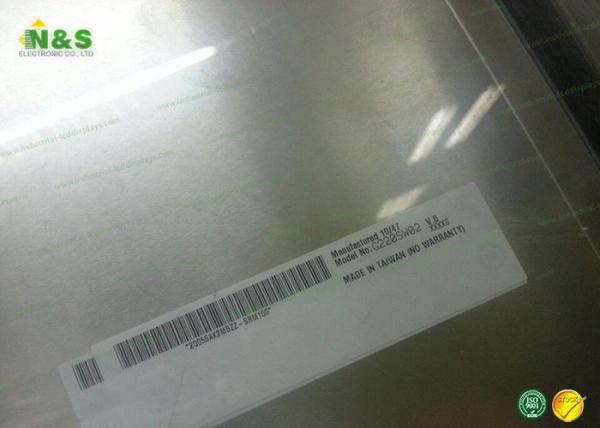

LVDS G220SW02 V0 22.0 inch auo display panel 1680 ×1050 Resolution
LVDS G220SW02 V0 22.0 inch auo display panel 1680 ×1050 Resolution
Specifications
Brand Name :
AUO
Model Number :
G220SW02 V0
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Contrast Ratio :
1000:1 (Typ.)
Panel Size :
22.0 inch
Resolution :
1680(RGB)×1050 , WSXGA+
Surface :
Glare (Haze 0%), Hard coating (3H)
Frequency :
60Hz
Signal Interface :
LVDS (2 ch, 8-bit) , 30 pins
Description

LVDS G220SW02 V0 22.0 inch auo display panel 1680 ×1050 Resolution

Panel Size : 22.0 inch
Dot Resolution : 1680(RGB)×1050 (WSXGA+)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 90 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.094×0.282 mm (H×V)
Pixel Pitch : 0.282×0.282 mm (H×V)
Weight :
3.50Kgs (Typ.)
Surface : Glare (Haze 0%), Hard coating (3H)
Active Area : 473.76×296.1 mm (H×V)
Bezel Area : 477.7×300.1 mm (H×V)
Outline Dimension : 493.7×320.1 mm (H×V)
Outline Depth : 23.0 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Lamp Position :
Edge light type
Lamp Type :
WLED
Lamp Amount : 9S6P
Lamp Shape : 6 strings
Lamp Life Time : 50K(Min.) (Hours)
Lamp Voltage : 31.5/36V (Typ./Max.)
Lamp Current : 70/120mA (Typ.)(2D/3D)
Lamps Power Consumption : 13.2/22.8W (Typ)(2D/3D)
Interface Type :
Connector
Backlight Interface Brand Model Pin Pitch Pins Amount Configuration
　 HRS DF14H-20P-1.25H(56) 1.25 mm 20 pins 1 pcs 　
Lamp Driver Board : Embedded (LED Driver)
Lamp Driver Board :
12.0/12.6V (Typ./Max.)
Lamp Driver Board : 1.2/2.4A (Typ.)(2D/3D)
Lamp Driver Board : 14.4/28.8W (Typ.)(2D/3D)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
X139BLB01.0 AUO 1.39" 400×400
H381DLN01.0 AUO 3.8" 1080×1200
H497TLB01.4 AUO 5.0" 720×1280
H163QLN01.0 AUO 1.63" 320×320
H139BLN01.2 AUO 1.39" 400×400
H500TLB01.0 AUO 5.0" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
