AA057QB03 Mitsubishi LCD Panel 5.7 inch for Industrial Application
AA057QB03 Mitsubishi LCD Panel 5.7 inch for Industrial Application
AA057QB03 Mitsubishi LCD Panel 5.7 inch for Industrial Application
AA057QB03 Mitsubishi LCD Panel 5.7 inch for Industrial Application
AA057QB03 Mitsubishi LCD Panel 5.7 inch for Industrial Application
AA057QB03 Mitsubishi LCD Panel 5.7 inch for Industrial Application
Specifications
Brand Name :
Mitsubishi
Model Number :
AA057QB03
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
Mitsubishi
Panel Model :
AA057QB03
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
5.7 inch
Resolution :
320(RGB)×240 , QVGA
Display Mode :
TN, Normally White, Transmissive
Description

AA057QB03 Mitsubishi LCD Panel 5.7 inch for Industrial Application

Specification of AA057QB03 Mitsubishi LCD

Panel Brand : Mitsubishi
Panel Model : AA057QB03
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 5.7 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 115.2×86.4 mm
Outline : 144×104.8×13.5 mm
Surface : Clear, Hard coating (3H)
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 450:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 10/25 (Typ.)(Tr/Td)
Viewing Angle : 60/60/60/40 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : CMOS (1 ch, 6-bit) , 33 pins
Input Voltage : 3.3V (Typ.)

Quality Control:

Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

Function Inspection

Make sure all functions are 100% tested ok

Panel Size : 5.7 inch
Dot Resolution : 320(RGB)×240 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 70 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.120×0.360 mm (H×V)
Pixel Pitch : 0.360×0.360 mm (H×V)
Weight : 220g (Typ.)
Surface : Clear, Hard coating (3H)
Active Area : 115.2×86.4 mm (H×V)
Bezel Area : 119.8×91.0 mm (H×V)
Outline Dimension : 144×104.8 mm (H×V)
Outline Depth : 13.0±0.5 mm
Holes & Brackets : Rear mounting holes (4-Ф2.6)
Landscape or Portrait : Landscape type
Touch Panel : Without

Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AA150XN21 Mitsubishi 15.0" 1024×768
AA121TD03 Mitsubishi 12.1" 1280×800
AA150XT11-DE-01 Mitsubishi 15.0" 1024×768
AA121XN11-DE-01 Mitsubishi 12.1" 1024×768
AA104XF12-DE-02 Mitsubishi 10.4" 1024×768
AA084XE11-DA-02 Mitsubishi 8.4" 1024×768
AA084XE11-DA-01 Mitsubishi 8.4" 1024×768

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

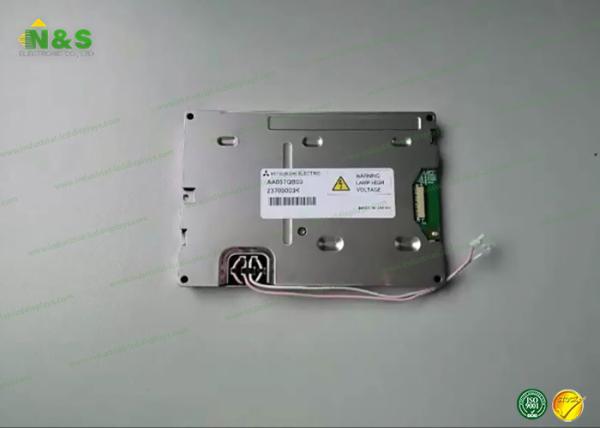

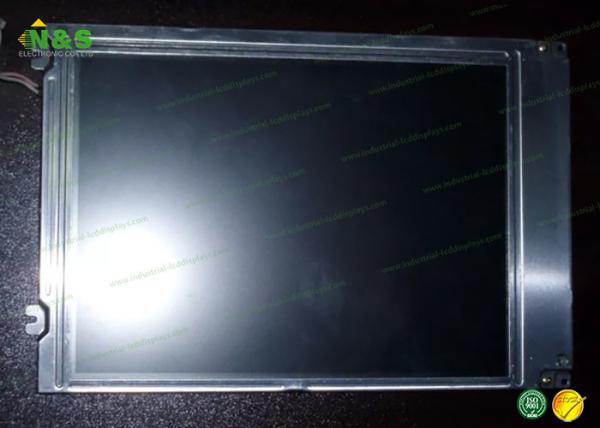

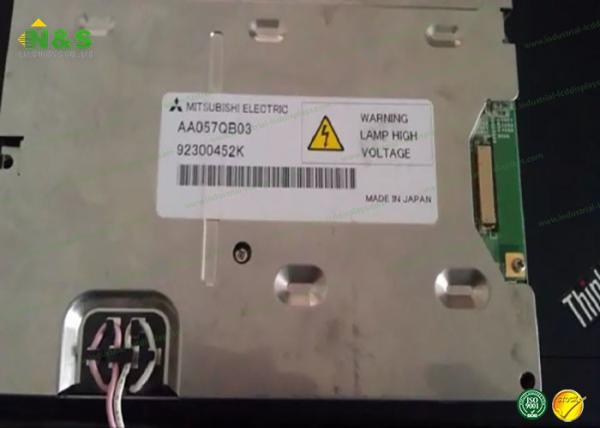

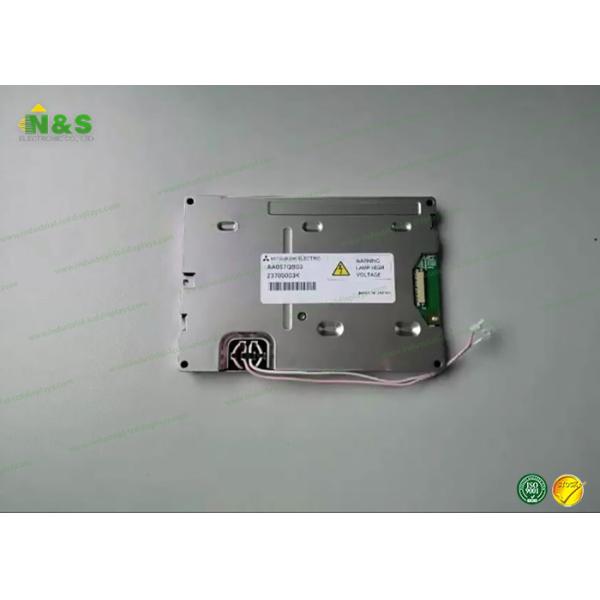

AA057QB03 Mitsubishi LCD picture
