LT044MDW7000 TFT LCD Module TOSHIBA 4.5 inch with 55.62×98.88 mm for Mobile Phone
LT044MDW7000 TFT LCD Module TOSHIBA 4.5 inch with 55.62×98.88 mm for Mobile Phone
Specifications
Brand Name :
TOSHIBA
Model Number :
LT044MDW7000
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3WORK DAY
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Resolution :
720(RGB)×1280 , WXGA
Panel Size :
4.5 inch
Panel Type :
LTPS TFT-LCD , LCM
Display Mode :
16.7M (8-bit) , CIE1931 65%
Brightness :
500 cd/m² (Typ.)
Contrast Ratio :
900:1 (Typ.)
Response Time :
25/25 (Typ.)(Tr/Td); 55 (Typ.)(G to G)
Viewing Angle :
80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Description

LT044MDW7000 TFT LCD Module TOSHIBA 4.5 inch with 55.62×98.88 mm for Mobile Phone

FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

LT044MDW7000 Specification

Panel Size : 4.5 inch
Dot Resolution : 720(RGB)×1280 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 328 PPI
Aspect Ratio : 9:16 (H:V)
Form Factor :
Flat Rectangle Display
Dot Pitch : 0.02575×0.07725 mm (H×V)
Pixel Pitch : 0.07725×0.07725 mm (H×V)
Weight : 15.1g (Typ.)
Active Area :
55.62×98.88 mm (H×V)
Bezel Area : 56.62×99.88 mm (H×V)
Outline Dimension :
58.42×107.8 mm (H×V)
Outline Depth : 1.6 (Typ.) mm
Landscape or Portrait :
Portrait type
Touch Panel : Without
Display Mode : Normally Black, Transmissive
Brightness : 500 cd/m² (Typ.)
Contrast Ratio :
900 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 65% NTSC (CIE1931)
Response Time : 25/25 (Typ.)(Tr/Td); 55 (Typ.)(G to G)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity :
Wx:0.312; Wy:0.330
White Variation : 1.25/1.43 (Typ./Max.)(9 points)
Sunlight Readable :
N

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
ED060SC3 E Ink 6.0" 800×600
ED050SC1 E Ink 5.0" 800×600
PD035QX7 E Ink 3.5" 320×240
PW070DS6 E Ink 7.0" 480×234
P1924QC1 E Ink 2.4" 240×320
PM049OX1 E Ink 4.9" 266×600
V1835HC1H1 E Ink 3.5" 320×480

Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day

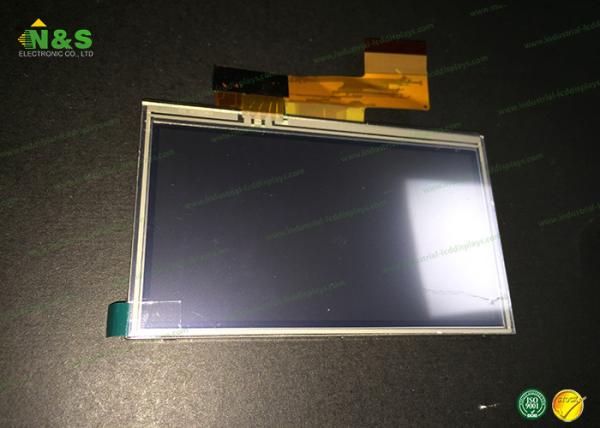

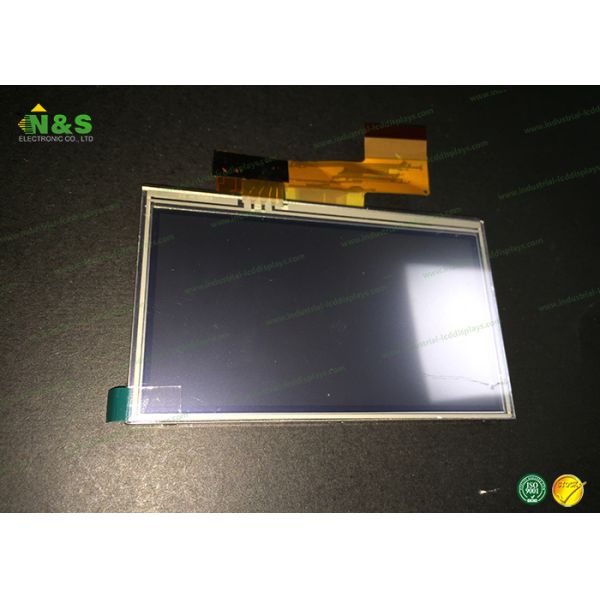

LT044MDW7000 Picture

LT044MDW7000 TFT LCD Module TOSHIBA 4.5 inch with 55.62×98.88 mm for Mobile Phone
