Specifications
Brand Name :
TOSHIBA
Model Number :
LTA197B0H0F
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1 Piece
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size : :
19.7 inch
Resolution : :
1280(RGB)×960 , Quad-VGA
Display Colors : :
262K (6-bit)
Lamp Type : :
4 pcs CCFL [8S6P: 8 Serial, 6 Parallel] Without Driver
Description

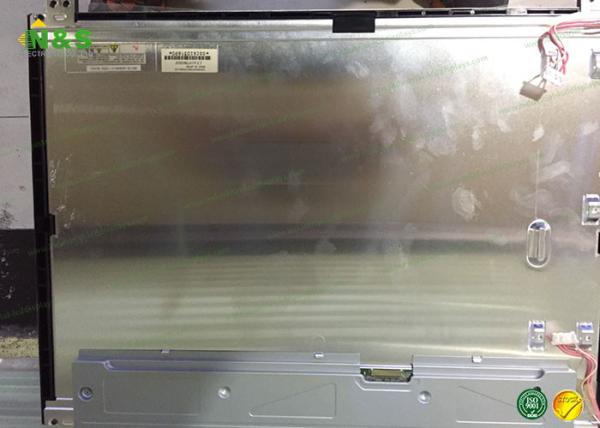

LTA197B0H0F TOSHIBA 19.7 inch 1280×960 262K CCFL LVDS 60Hz

LTA197B0H0F Specification

Panel Size : 19.7 inch
Dot Resolution : 1280(RGB)×960 (Quad-VGA)
Pixel Configuration : RGB Vertical Stripe
Form Factor : Flat Rectangle Display
Landscape or Portrait : Landscape type

LTA197B0H0F Specification

Lamp Position : Edge light type (Top and Bottom)
Lamp Type : CCFL
Lamp Amount : 4 pcs
Lamp Shape : Straight
Interface Type : Connector
Lamp Driver Board : No

LTA197B0H0F Specification

Signal Category : LVDS
Signal Class : LVDS (1 ch, 6-bit)
Interface Type : Connector
Signal Interface : Brand Model Pin Pitch Pins Amount Configuration
20 pins 1 pcs

Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

We can do for you:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

Our service

1. Agent Brand:

* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;

2. Quality to be guaranteed:

* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;

* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;

3. Quickly delivery:

* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.

4. long-term partner:

* Products are sold to more than 20 countries.

5. Super After-Sale service:

* One year warranty .

6. The best TFT LCD solution:

*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.

To get the latest prices, pls feel free to contact us.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LT070AA32600 TOSHIBA 7.0" 800×480
LT065AC57400 TOSHIBA 6.5" 640×480
LT065AC57000 TOSHIBA 6.5" 640×480
LT057AC47200 TOSHIBA 5.7" 640×480
LT057AC47100 TOSHIBA 5.7" 640×480
LT057AA34E00 TOSHIBA 5.7" 320×240
