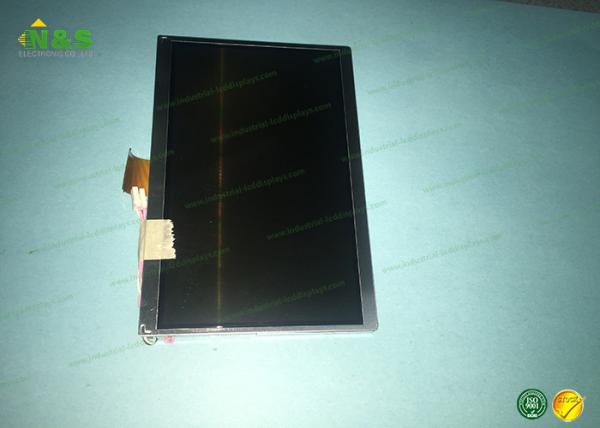

7.0 inch CLAA069LA1AAW TFT LCD Module CPT Normally White 167×93×6.77 mm
7.0 inch CLAA069LA1AAW TFT LCD Module CPT Normally White 167×93×6.77 mm
Specifications
Brand Name :
CPT
Model Number :
CLAA069LA1AAW
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
7.0 inch
Resolution :
800(RGB)×480 , WVGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
156.6×81.6 mm
Outline :
167×93×6.77 mm
Description

7.0 inch CLAA069LA1AAW TFT LCD Module CPT Normally White 167×93×6.77 mm

Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.

Our service

1. Agent Brand:

* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;

2. Quality to be guaranteed:

* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;

* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;

3. Quickly delivery:

* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.

4. long-term partner:

* Products are sold to more than 20 countries.

5. Super After-Sale service:

* One year warranty .

6. The best TFT LCD solution:

*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.

To get the latest prices, pls feel free to contact us.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
CLAG045LJ72 CPT 4.5" 480×854
CLAN050WD61 6XM CPT 5.0" 720×1280
CLAD015GC41 AX CPT 1.5" 240×240
CLAA090WK05XN CPT 9.0" 1280×720
CLAC080XA12LW CPT 8.0" 1024×768
CLAD015GB01 AX CPT 1.5" 240×240
CLAG045LG71 XX CPT 4.5" 480×854
CLAG045LH41 AXXA CPT 4.5" 480×854
CLAF020GC21A0 CPT 2.0" 240×320

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

CLAA069LA1AAW Information

Panel Size : 7.0 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 134 PPI
Aspect Ratio : 17:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.06525×0.170 mm (H×V)
Pixel Pitch : 0.19575×0.170 mm (H×V)
Weight : 165g (Typ.)
Surface : Antiglare
Active Area : 156.6×81.6 mm (H×V)
Bezel Area : 159.0×83.8 mm (H×V)
Outline Dimension : 167×93 mm (H×V)
Outline Depth : 6.05/6.77 (Typ./Max.) mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 500 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/65/55 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.43/1.67 (Typ./Max.)(9 points)
Sunlight Readable : N
