211.2×158.4 mm LQ10D361 sharp lcd tv screen replacement HIGH Resolution
211.2×158.4 mm LQ10D361 sharp lcd tv screen replacement HIGH Resolution
211.2×158.4 mm LQ10D361 sharp lcd tv screen replacement HIGH Resolution
211.2×158.4 mm LQ10D361 sharp lcd tv screen replacement HIGH Resolution
Specifications
Brand Name :
Sharp
Model Number :
LQ10D361
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
SHARP
Panel Model :
LQ10D361
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
10.4 inch
Resolution :
640(RGB)×480 , VGA
Display Mode :
TN, Normally White, Transmissive
Description

211.2×158.4 mm LQ10D361 Sharp LCD Panel 10.4 inch LCM 640×480

LQ10D361 Product Information

Panel Brand : SHARP
Panel Model : LQ10D361
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode :
TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 246.5×179.4 mm
Surface : Antiglare (Haze 28%), Hard coating (3H), Antireflection
Brightness :
Contrast Ratio :
Display Colors : 262K (6-bit)
Response Time :
Viewing Angle :
Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : Parallel RGB (1 ch, 6-bit) , 31 pins
Input Voltage :
5.0V (Typ.)(VCC)

Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

We can do for you:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160

Panel Size : 10.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor :
Flat Rectangle Display
Dot Pitch : 0.110×0.330 mm (H×V)
Pixel Pitch : 0.330×0.330 mm (H×V)
Surface : Antiglare (Haze 28%), Hard coating (3H), Antireflection
Active Area : 211.2×158.4 mm (H×V)
Bezel Area :
216.2×163.4 mm (H×V)
Outline Dimension : 246.5×179.4 mm (H×V)
Holes & Brackets :
Face mounting holes (4 pcs)
Landscape or Portrait : Landscape type
Touch Panel : Without

Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

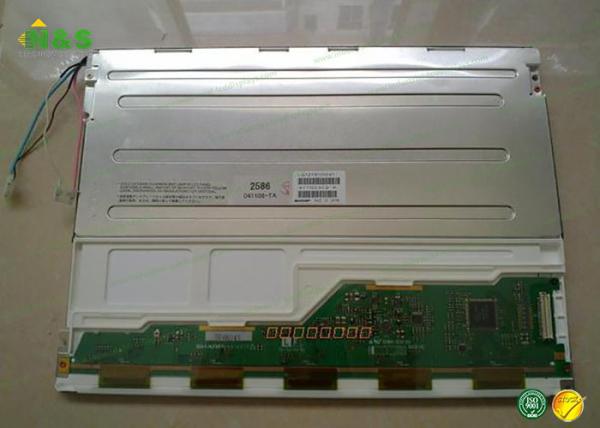

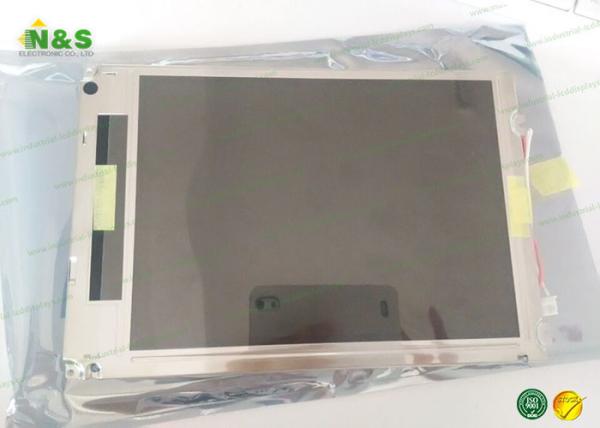

LQ10D361 Picture
