Hard coating LQ072K1LA03 Sharp LCD Panel 7.2 inch Normally White
Hard coating LQ072K1LA03 Sharp LCD Panel 7.2 inch Normally White
Specifications
Brand Name :
Sharp
Model Number :
LQ072K1LA03
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
SHARP
Panel Model :
LQ072K1LA03
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
7.2 inch
Resolution :
1280(RGB)×768 , WXGA
Display Mode :
TN, Normally White, Transmissive
Description

Hard coating LQ072K1LA03 Sharp LCD Panel 7.2 inch Normally White


LQ072K1LA03 Detail

Panel Brand : SHARP
Panel Model :
LQ072K1LA03 0 Compatible model
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 7.2 inch
Resolution :
1280(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 157.44×94.464 mm
Outline : 185×115.9 mm
Surface : Glare (Haze 0%), Hard coating (2H), Antireflection
Brightness :
235 cd/m² (Typ.)
Contrast Ratio : 150:1 (Min.)
Display Colors :
262K (6-bit)
Response Time : 45 (Typ.)(Tr+Td)
Viewing Angle :
60/60/45/60 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 8S4P WLED Without Driver
Signal Interface :
LVDS (1 ch, 6-bit) , 14 pins
Input Voltage : 3.3V (Typ.)

Our Advantage :

>>Quality Guarantee:

Our LCD Panels are 100% original and brand new!

Warranty : 12 months

You can enjoy the real panels directly from the LCD panel brand distributor.

>>Packing Guarantee:

All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!

>>Delivery Guarantee:

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!

>>After-Sale service

We have many years good experience on display solution.

Any question, we will reply you within 12 hours.

Panel Size : 7.2 inch
Dot Resolution :
1280(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 206 PPI
Aspect Ratio :
15:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.041×0.123 mm (H×V)
Pixel Pitch : 0.123×0.123 mm (H×V)
Weight : 140/155g (Typ./Max.)
Surface :
Glare (Haze 0%), Hard coating (2H), Antireflection
Active Area : 157.44×94.464 mm (H×V)
Bezel Area :
161.1×98.0 mm (H×V)
Outline Dimension : 185×115.9 mm (H×V)
Outline Depth :
7.5 (Max.) mm
Holes & Brackets : Face mounting holes (4 pcs; on bracket)
Landscape or Portrait :
Landscape type
Touch Panel : Without

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LK315T3HC1K SHARP 31.5" 1366×768
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.

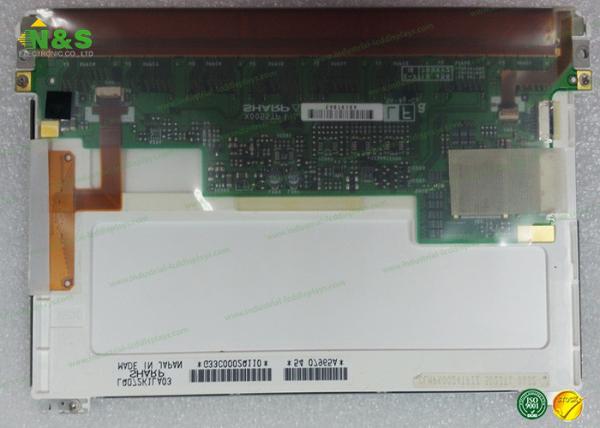

LQ072K1LA03 Picture


Hard coating LQ072K1LA03 Sharp LCD Panel 7.2 inch Normally White
