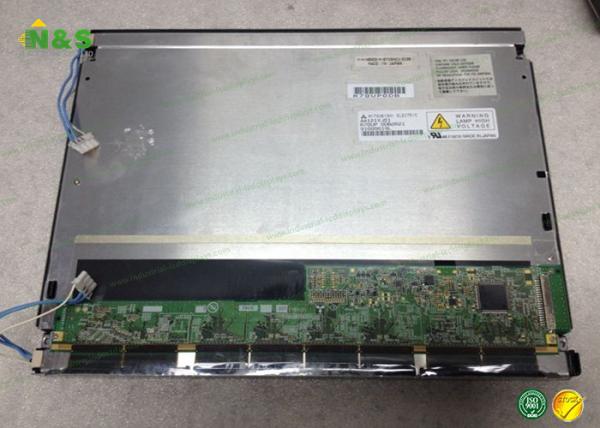

Normally White AA121XJ01 TFT LCD Module Mitsubishi 12.1 inch with 245.76×184.32 mm Active Area
Normally White AA121XJ01 TFT LCD Module Mitsubishi 12.1 inch with 245.76×184.32 mm Active Area
Specifications
Brand Name :
Mitsubishi
Model Number :
AA121XJ01
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
12.1 inch
Resolution :
1024(RGB)×768 , XGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
245.76×184.32 mm
Outline :
280×219×18.3 mm
Description

Normally White AA121XJ01 TFT LCD Module Mitsubishi 12.1 inch with 245.76×184.32 mm Active Area

What is our advantage?

Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.

Delivery Quantity: 50-100 cartons shipped by DHL every week

Supply Ability: 100 pcs Panels per day.

Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)

Warranty: 12 months.

Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Competitive price for different brands hard disk.

• Mass stock with the better price.

• Multiple options.

• Warranty service.

• Better team to provide the before-sales, on-sale and after-sale service

• Pls send us message if any hard disk needed.

AA121XJ01 Information

Panel Size : 12.1 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 105 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.080×0.240 mm (H×V)
Pixel Pitch : 0.240×0.240 mm (H×V)
Weight : 1.15Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 245.76×184.32 mm (H×V)
Bezel Area : 249.0×187.5 mm (H×V)
Outline Dimension : 280×219 mm (H×V)
Outline Depth : 17.8 (Typ.) mm
Holes & Brackets : Face mounting holes (4-Φ3.5) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 1000 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut : 40% NTSC (CIE1931)
Response Time : 6/19 (Typ.)(Tr/Td)
Viewing Angle : 65/65/75/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.30 (Max.)(5 points)
Sunlight Readable : Y

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AA084VB01 Mitsubishi 8.4" 640×480
AA084SB01--T2 Mitsubishi 8.4" 800×600
AA084SA02 Mitsubishi 8.4" 800×600
AA084SA01--T1 Mitsubishi 8.4" 800×600
AA065VB07 Mitsubishi 6.5" 640×480
AA065VA01 Mitsubishi 6.5" 640×480
AA057VF01 Mitsubishi 5.7" 640×480

Pls contact to us for more stock information: salespm@nselectronic.com.hk
