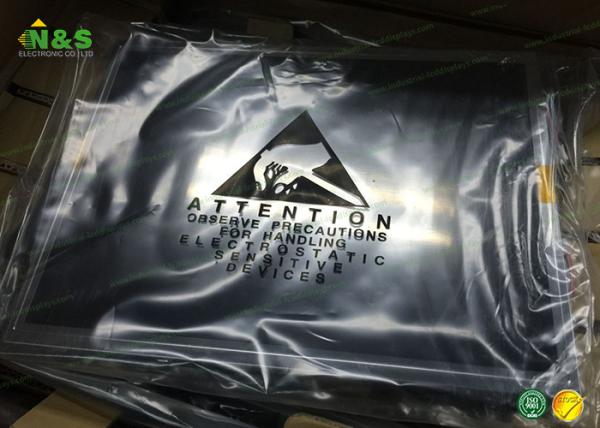

7.0 AA150XA03 TFT LCD Module Mitsubishi with 141.6×106.2 mm Active Area LCM 1024×768 250 350:1 16.7M CCFL TTL
7.0 AA150XA03 TFT LCD Module Mitsubishi with 141.6×106.2 mm Active Area LCM 1024×768 250 350:1 16.7M CCFL TTL
Specifications
Brand Name :
Mitsubishi
Model Number :
AA150XA03
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
15.0 inch
Resolution :
1024(RGB)×768 , XGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
304.1×228.1 mm
Outline :
350×266.5×15 mm
Description

7.0 AA150XA03 TFT LCD Module Mitsubishi with 141.6×106.2 mm Active Area LCM 1024×768 250 350:1 16.7M CCFL TTL

FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AA084SD11-DA-01 Mitsubishi 8.4" 800×600
AA084SB11--T2 Mitsubishi 8.4" 800×600
AA104XF12-CE-01 Mitsubishi 10.4" 1024×768
D150X-N02 Mitsubishi 15.0" 1024×768
AA121TD03 Mitsubishi 12.1" 1280×800
AA150XT11-DE-01 Mitsubishi 15.0" 1024×768

Pls contact to us for more stock information: salespm@nselectronic.com.hk

AA150XA03 Information

Panel Size : 15.0 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch : 0.297×0.297 mm (H×V)
Weight : 1.30Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 304.1×228.1 mm (H×V)
Bezel Area : 308.1×232.1 mm (H×V)
Outline Dimension : 350×266.5 mm (H×V)
Outline Depth : 10.2/15.0 (Typ./Max.) mm
Holes & Brackets : Face mounting holes (3-Φ3.5, 2-R1.75) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 350 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 10/25 (Typ.)(Tr/Td)
Viewing Angle : 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.324; Wy:0.349
White Variation : 1.30 (Max.)(5 points)
Sunlight Readable : N
